1/2" 4-Flute Solid Carbide Corner Radius End Mill, Duarise - OSG 82202221

OSG

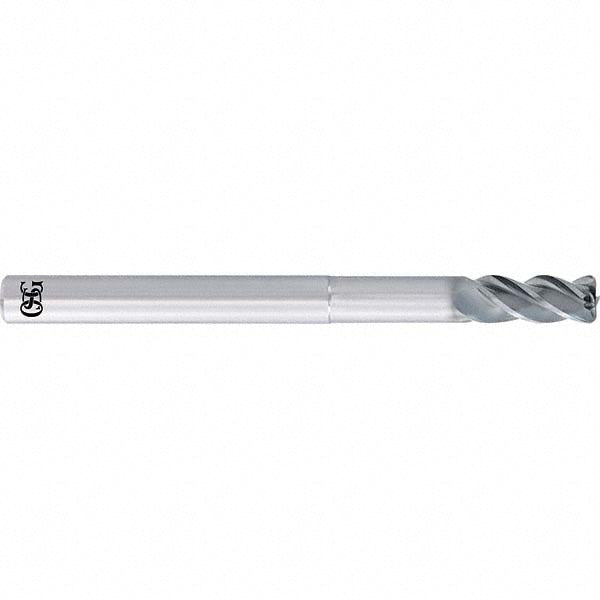

1/2" 4-Flute Solid Carbide Corner Radius End Mill, Duarise - OSG 82202221

MFR# 82202221Series 8220

$163.97List $210.31 Save 22%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingDuarise

Description

The OSG 82202221 is a 1/2 4-flute Solid Carbide corner radius end mill with a Duarise finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 5/8 length of cut, 4 overall length. Series 8220.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishDuarise
Coolant throughNo
Corner radius0.0150
Corner radius tolerance0.0000 to -0.0008 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleVariable
Length of cut in5/8
Length typeStub
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material removal typeRoughing & Finishing
Mill diameter in1/2
Mill diameter tolerance0.0000 to -0.0012 in
Neck diameter0.4700
Number of flutes4
Overall length in4
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Reach length in2-1/4
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
