OSG

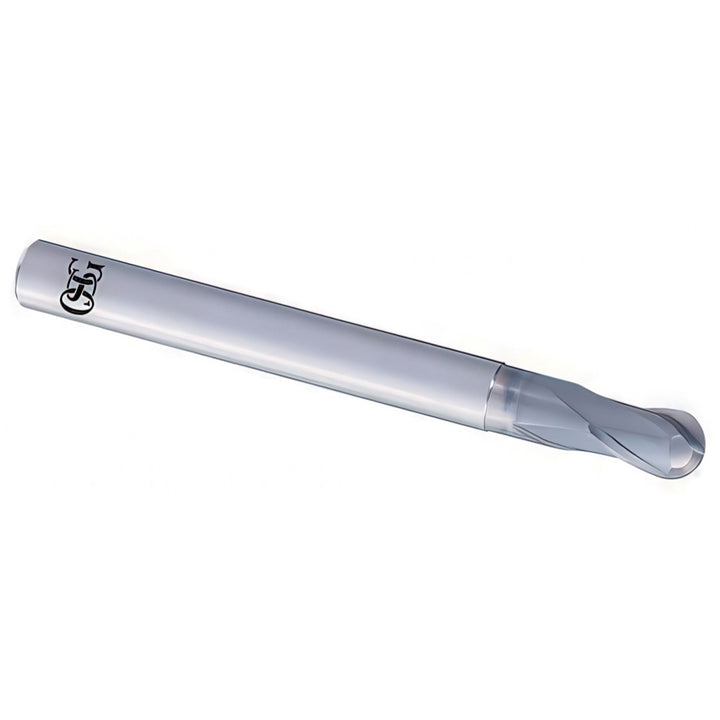

1/8in" 2-Flute Solid Carbide Ball End Mill, DUROREY - OSG 84100323
MFR# 84100323Series 8410
$78.05List $98.36
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/8in
Flutes2
MaterialSolid Carbide
CoatingDUROREY
Description
The OSG 84100323 is a 1/8in 2-flute Solid Carbide ball end mill with a DUROREY finish for longer tool life. Suited for hard material. 1/8 length of cut, 2in overall length. Series 8410.
Specifications
Additional information2-Flute High-Precision Finishing Carbide Ball End Mill For High-Hardness Steels
ChipbreakerNo
Coating finishDUROREY
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle20
Helix styleLow
Length of cut in1/8
Length typeStub
Manufacturers catalog number84100323
Material removal typeRoughing & Finishing
Mill diameter in1/8in
Mill diameter tolerance+0.00000/-0.00028 in
Neck diameter0.1230in
Neck length0.0000
Nose radius0.0625
Number of flutes2
Overall length in2in
Primary workpiece materialHard Material
Reach length0.0980
Secondary workpiece materialSteel
Shank diameter in1/4in
Shank diameter toleranceh4
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
