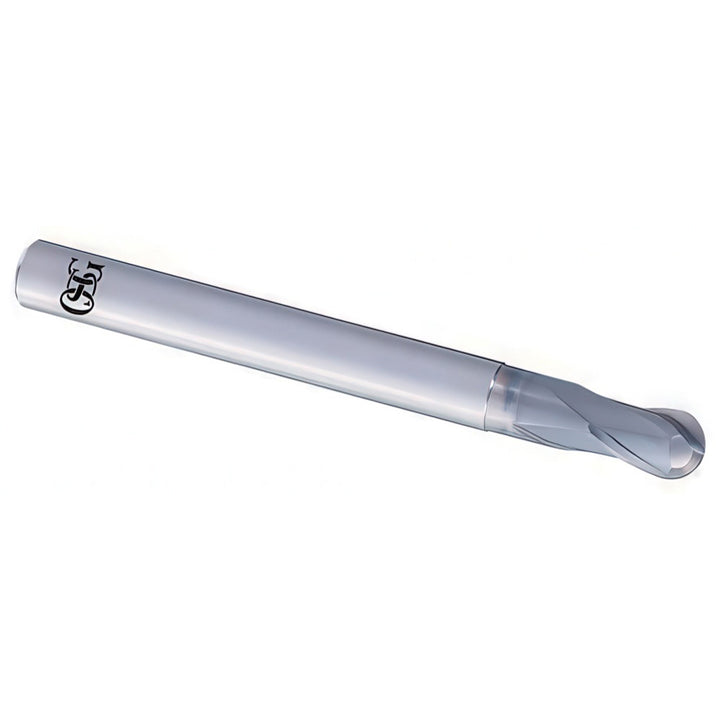

3/16in" 2-Flute Solid Carbide Ball End Mill, DUROREY - OSG 84100423

OSG

3/16in" 2-Flute Solid Carbide Ball End Mill, DUROREY - OSG 84100423

MFR# 84100423Series 8410

$70.51List $90.43 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16in
Flutes2
MaterialSolid Carbide
CoatingDUROREY

Description

The OSG 84100423 is a 3/16in 2-flute Solid Carbide ball end mill with a DUROREY finish for longer tool life. Suited for hard material. 3/16 length of cut, 2-1/2in overall length. Series 8410.

Specifications

Additional information2-Flute High-Precision Finishing Carbide Ball End Mill For High-Hardness Steels
ChipbreakerNo
Coating finishDUROREY
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle20
Helix styleLow
Length of cut in3/16
Length typeStub
Manufacturers catalog number84100423
Material removal typeRoughing & Finishing
Mill diameter in3/16in
Mill diameter tolerance+0.00000/-0.00028 in
Neck diameter0.1850in
Neck length0.0000
Nose radius0.0938
Number of flutes2
Overall length in2-1/2in
Primary workpiece materialHard Material
Reach length0.1500
Secondary workpiece materialSteel
Shank diameter in1/4in
Shank diameter toleranceh4
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
