1/4in" 4-Flute Solid Carbide Ball End Mill, DUROREY - OSG 84300223

OSG

1/4in" 4-Flute Solid Carbide Ball End Mill, DUROREY - OSG 84300223

MFR# 84300223Series 8430

$92.37List $118.47 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4in
Flutes4
MaterialSolid Carbide
CoatingDUROREY

Description

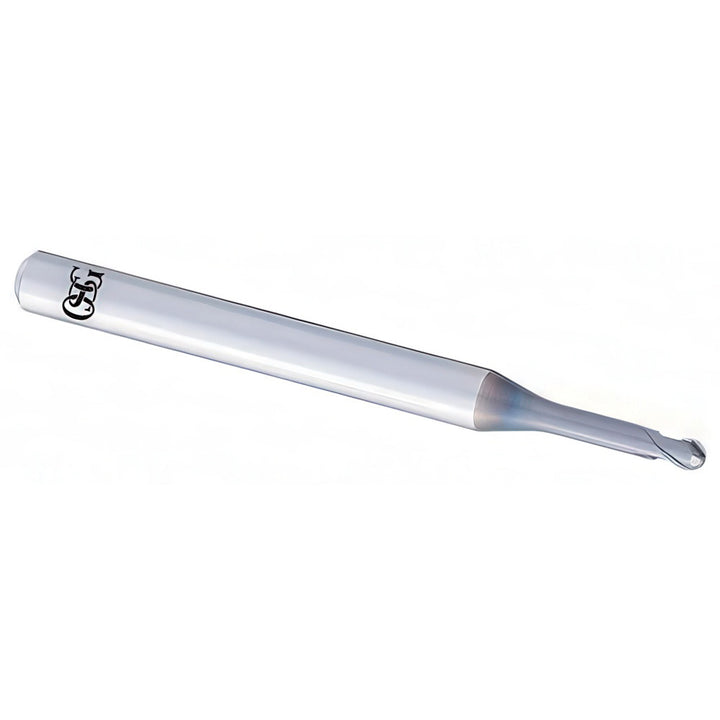

The OSG 84300223 is a 1/4in 4-flute Solid Carbide ball end mill with a DUROREY finish for longer tool life. Suited for hard material. 1/2in length of cut, 3-1/2in overall length. Series 8430.

Specifications

Additional information4-Flute High-Precision Finishing Carbide Ball End Mill For High-Hardness Steels
ChipbreakerNo
Coating finishDUROREY
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle40
Helix styleHigh
Length of cut in1/2in
Length typeStandard
Manufacturers catalog number84300223
Material removal typeRoughing & Finishing
Mill diameter in1/4in
Mill diameter tolerance0.00039 in
Neck length0.0000
Nose radius0.1250
Number of flutes4
Overall length in3-1/2in
Primary workpiece materialHard Material
Reach length0.5000
Secondary workpiece materialSteel
Shank diameter in1/4in
Shank diameter toleranceh4
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexYes
