0.0394" 2-Flute Solid Carbide Square End Mill - OSG 8502010

OSG

0.0394" 2-Flute Solid Carbide Square End Mill - OSG 8502010

MFR# 8502010Series 8120

$53.53List $68.65 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide

Description

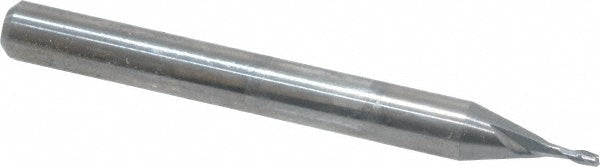

The OSG 8502010 is a 0.0394 2-flute Solid Carbide (Micrograin) square end mill. 0.0984 length of cut. Series 8120.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.0984
Length typeRegular
Material gradeMicrograin
Mill diameter0.0394
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length (mm)40.00
Shank diameter (mm)4.00
Variable helixNo
Variable indexNo
