0.3346" 2-Flute Solid Carbide Square End Mill - OSG 8502085

OSG

0.3346" 2-Flute Solid Carbide Square End Mill - OSG 8502085

MFR# 8502085Series 8120

$122.73List $157.41 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

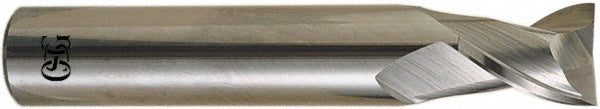

The OSG 8502085 is a 0.3346 2-flute Solid Carbide (Micrograin) square end mill. 0.748 length of cut. Series 8120.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.748
Length of cut range0.7000 - 0.8000
Length typeRegular
Material gradeMicrograin
Mill diameter0.3346
Number of flutes2
Overall length (mm)70
Shank diameter0.3937
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Guhring0.3346" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlN - Guhring 9038920085000 $70.68 Guhring0.3346" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlN - Guhring 9038910085000 $67.30 OSG0.3346" 4-Flute Cobalt Square End Mill - OSG 5818600 $25.80 Hertel0.3346" 4-Flute Cobalt Square End Mill - Hertel H59912287 $24.28
