OSG

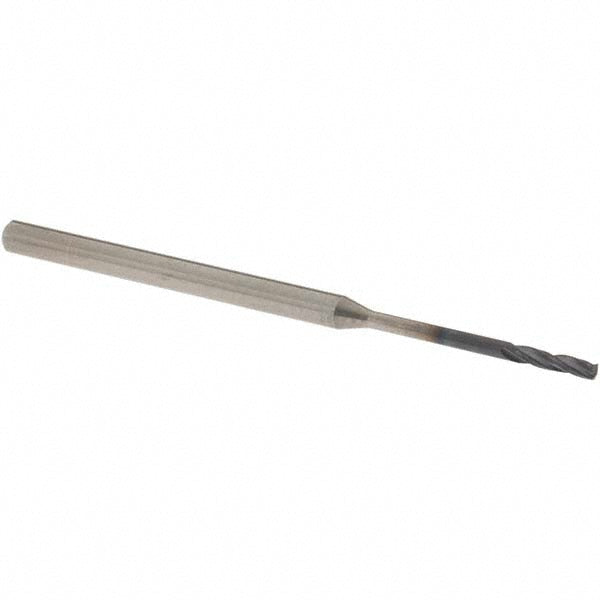

0.0630" Solid Carbide Drill Bit, EXO, 140° point - OSG 8569016
MFR# 8569016Series 5310
$114.15List $143.03
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingEXO
Description
The OSG 8569016 is a 0.0630" Solid Carbide drill bit with a EXO finish, 140° point. Series 5310.
Specifications
Coating finishEXO
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit size0.0630
Drill point angle140
Flute by diameter ratio20xD
Flute length (mm)20.00
Flute typeSpiral
Number of flutes3
Overall length (mm)62.00
Point typeStandard
Shank diameter (mm)3.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
