OSG

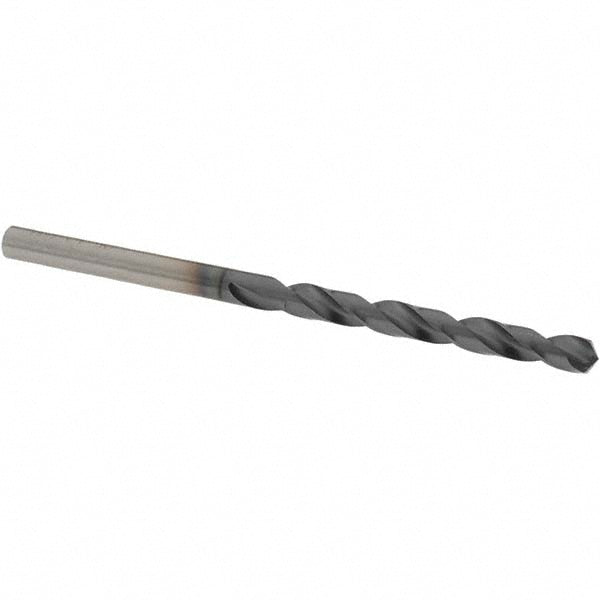

#16 Vanadium High Speed Steel Drill Bit, TiCN, 120° point - OSG 8594045
MFR# 8594045Series 1800
$20.54List $25.88
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiCN
Description
The OSG 8594045 is a #16 Vanadium High Speed Steel drill bit with a TiCN finish, 120° point. Suited for steel, alloy steel, stainless steel, cast iron, aluminum, aluminum alloy, aluminum silicate. Series 1800.
Specifications
Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit finish coatingTiCN
Drill bit gradeHigh Performance
Drill bit materialVanadium High Speed Steel
Drill bit size0.1772
Drill bit size range0.1500 - 0.2000
Drill bit size wire#16
Drill point angle degrees120
Flute length (mm)47.00
Flute typeSpiral
Number of flutes2
Overall length (mm)80.00
Point typeX-Thinned
Primary workpiece materialSteel; Alloy Steel; Stainless Steel; Cast Iron; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)4.50
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningX-Thinned
