0.2835" Vanadium High Speed Steel Drill Bit, TiCN, 120° point - OSG 8594072

OSG

0.2835" Vanadium High Speed Steel Drill Bit, TiCN, 120° point - OSG 8594072

MFR# 8594072Series 1800

$38.37List $49.22 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiCN

Description

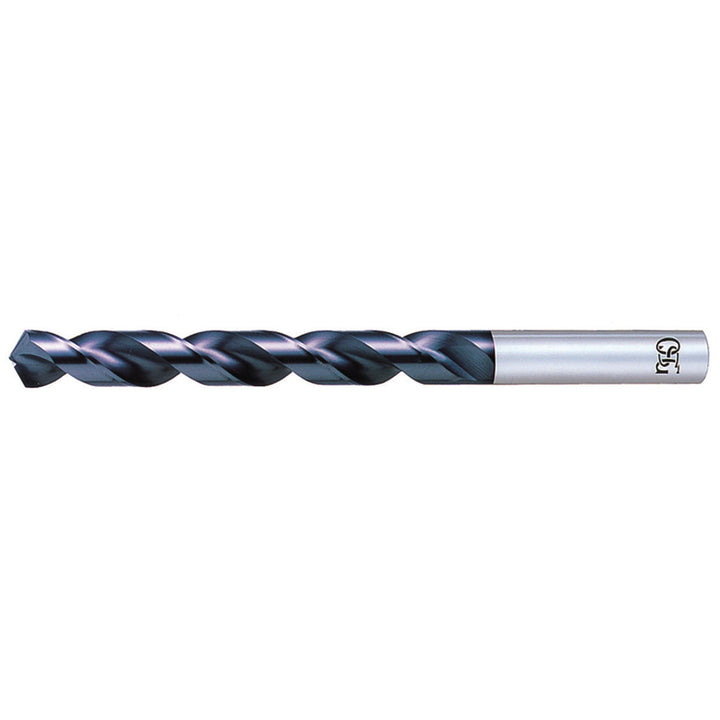

The OSG 8594072 is a 0.2835" Vanadium High Speed Steel drill bit with a TiCN finish, 120° point. Suited for steel, alloy steel, stainless steel, cast iron, aluminum, aluminum alloy, aluminum silicate. Series 1800.

Specifications

Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit finish coatingTiCN
Drill bit gradeHigh Performance
Drill bit materialVanadium High Speed Steel
Drill bit size0.2835
Drill bit size range0.2500 - 0.3000
Drill point angle degrees120
Flute length (mm)69.00
Flute typeSpiral
Number of flutes2
Overall length (mm)109.00
Point typeX-Thinned
Primary workpiece materialSteel; Alloy Steel; Stainless Steel; Cast Iron; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)7.20
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningX-Thinned
