OSG
#72 Vanadium High Speed Steel Screw Machine Drill Bit, TiN, 150° point - OSG 8595064
MFR# 8595064Series 1100
$26.95List $34.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description

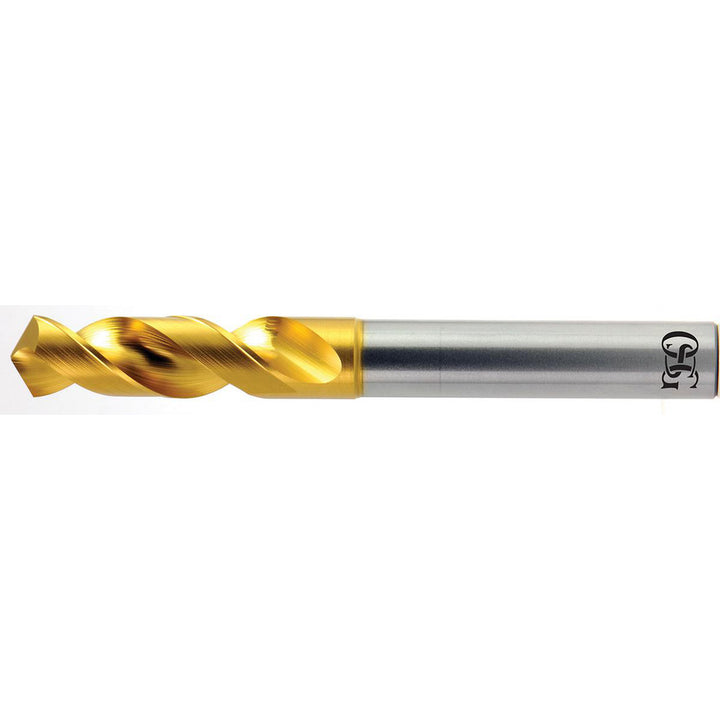

The OSG 8595064 is a #72 Vanadium High Speed Steel Screw Machine drill bit with a TiN finish, 150° point. Suited for steel, stainless steel, aluminum & non-ferrous. Series 1100.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.014 mm
Drill bit gradeHigh Performance
Drill bit size0.0250
Drill bit size range0.0000 to 0.1000
Drill bit size wire#72
Drill length typeScrew Machine
Drill point angle150
Flute by diameter ratio5xD
Flute length (mm)4.00
Flute typeRegular Spiral
Number of flutes2
Overall length1.4961
Point type4 Facet
Primary workpiece materialSteel; Stainless Steel; Aluminum & Non-Ferrous
Shank diameter0.1181
Shank typeStraight
Spiral typeRegular
Tool materialVanadium High Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
