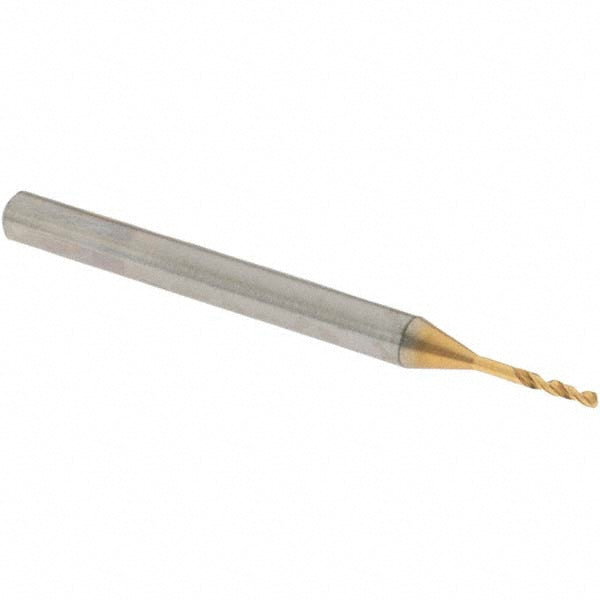

#65 High Speed Steel Screw Machine Drill Bit, Coated, 150° point - OSG 8595089

OSG

#65 High Speed Steel Screw Machine Drill Bit, Coated, 150° point - OSG 8595089

MFR# 8595089Series 1100

$24.52List $31.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The OSG 8595089 is a #65 High Speed Steel Screw Machine drill bit with a Coated finish, 150° point. Suited for steel, stainless steel, aluminum, aluminum alloy, aluminum silicate. Series 1100.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.014 mm
Drill bit gradeHigh Performance
Drill bit size0.0350
Drill bit size range0.0000 to 0.1000
Drill bit size wire#65
Drill length typeScrew Machine
Drill point angle150
Flute by diameter ratio5xD
Flute length (mm)5.50
Flute typeSpiral
Number of flutes2
Overall length (mm)38.00
Point typeRadial
Primary workpiece materialSteel; Stainless Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)3.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
