OSG

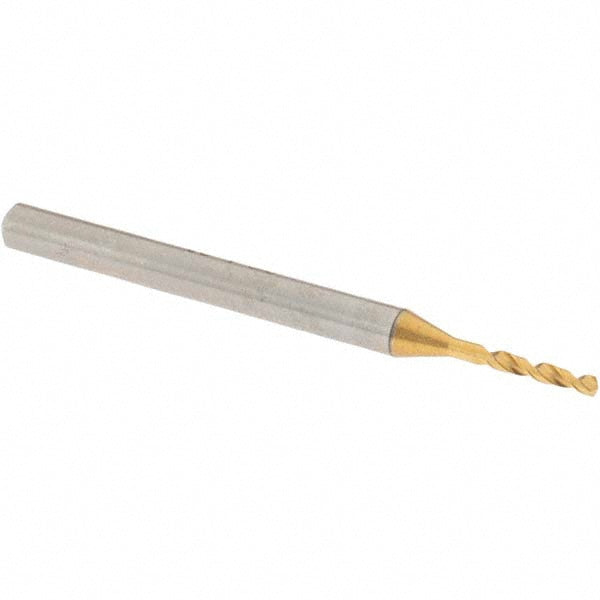

0.0484" High-Speed Steel Screw Machine Drill Bit, TiN, 140° point - OSG 8595123
MFR# 8595123Series 1100
$22.23List $28.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The OSG 8595123 is a 0.0484" High-Speed Steel Screw Machine drill bit with a TiN finish, 140° point. Suited for steel, stainless steel, aluminum, aluminum alloy, aluminum silicate. Series 1100.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.014 mm
Drill bit gradeHigh Performance
Drill bit size0.0484
Drill bit size range0.0000 to 0.1000
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio5xD
Flute length (mm)8.00
Flute typeSpiral
Number of flutes2
Overall length1.5748
Point typeFaceted
Primary workpiece materialSteel; Stainless Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter0.1181
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh-Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
