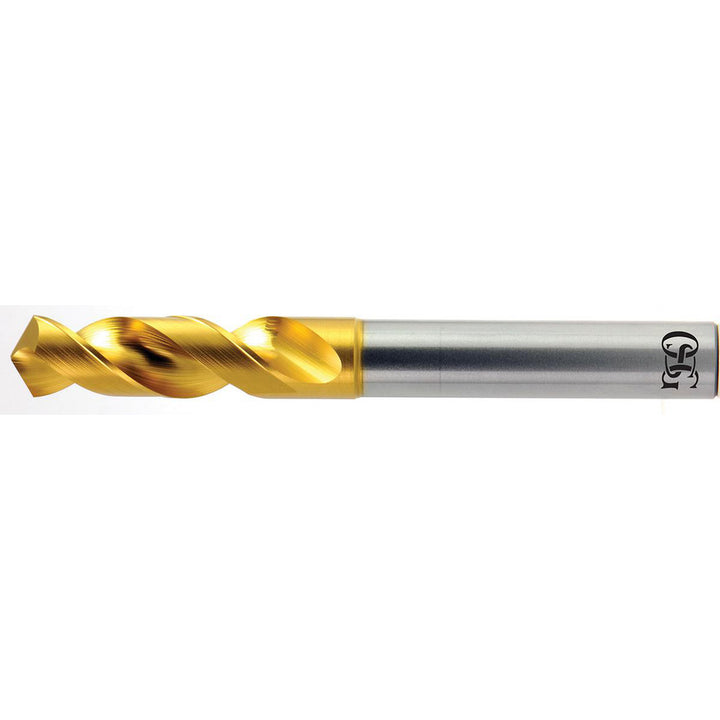

0.0862" High-Speed Steel Screw Machine Drill Bit, TiN, 130° point - OSG 8595219

OSG

0.0862" High-Speed Steel Screw Machine Drill Bit, TiN, 130° point - OSG 8595219

MFR# 8595219Series 1100

$22.23List $28.51 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The OSG 8595219 is a 0.0862" High-Speed Steel Screw Machine drill bit with a TiN finish, 130° point. Suited for steel, stainless steel, aluminum, aluminum alloy, aluminum silicate. Series 1100.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.014 mm
Drill bit gradeHigh Performance
Drill bit size0.0862
Drill bit size range0.0000 to 0.1000
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio5xD
Flute length (mm)13.00
Flute typeSpiral
Number of flutes2
Overall length1.7717
Point typeFaceted
Primary workpiece materialSteel; Stainless Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter0.1181
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh-Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
