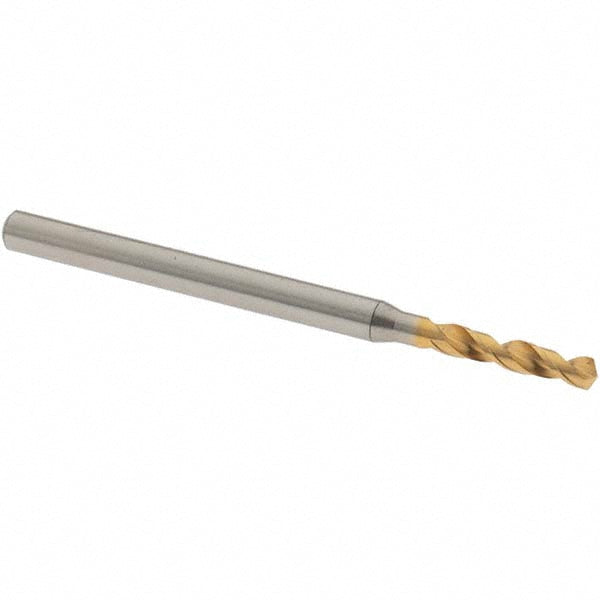

0.0874" Vanadium High Speed Steel Screw Machine Drill Bit, TiN, 130° point - OSG 8595222

OSG

0.0874" Vanadium High Speed Steel Screw Machine Drill Bit, TiN, 130° point - OSG 8595222

MFR# 8595222Series 1100

$22.23List $28.51 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The OSG 8595222 is a 0.0874" Vanadium High Speed Steel Screw Machine drill bit with a TiN finish, 130° point. Suited for steel, stainless steel, aluminum & non-ferrous. Series 1100.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.014 mm
Drill bit gradeHigh Performance
Drill bit size0.0874
Drill bit size range0.0000 to 0.1000
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio5xD
Flute length (mm)13.00
Flute typeRegular Spiral
Number of flutes2
Overall length1.7717
Point type4 Facet
Primary workpiece materialSteel; Stainless Steel; Aluminum & Non-Ferrous
Shank diameter0.1181
Shank typeStraight
Spiral typeRegular
Tool materialVanadium High Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
