OSG

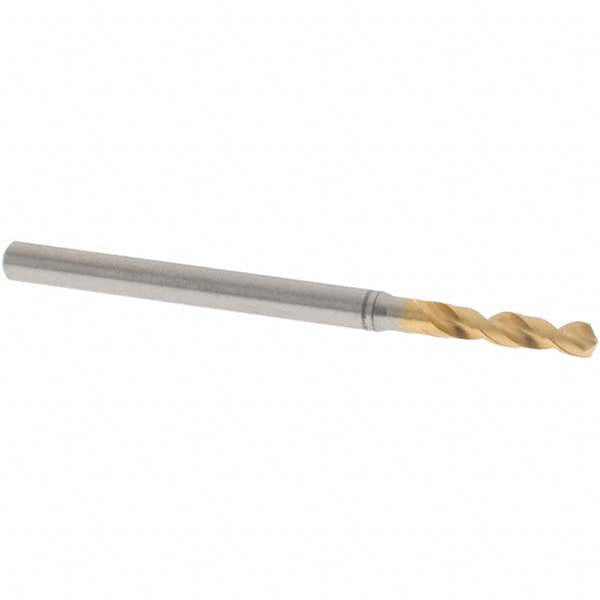

#39 High Speed Steel Drill Bit, TiN, 130° point - OSG 8595253
MFR# 8595253Series 1100
$21.65List $27.77
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The OSG 8595253 is a #39 High Speed Steel drill bit with a TiN finish, 130° point. Suited for steel, stainless steel, aluminum, aluminum alloy, aluminum silicate. Series 1100.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHigh Performance
Drill bit size0.0995
Drill bit size range0.0000 to 0.1000
Drill bit size wire#39
Drill point angle130
Flute length (mm)14.00
Flute typeSpiral
Overall length (mm)46.00
Point typeFaceted
Primary workpiece materialSteel; Stainless Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)3.00
Shank typeStraight-Cylindrical
Spiral typeFast
Tool materialHigh Speed Steel
Web configurationParallel
Web thinningWeb-Thinned
