OSG

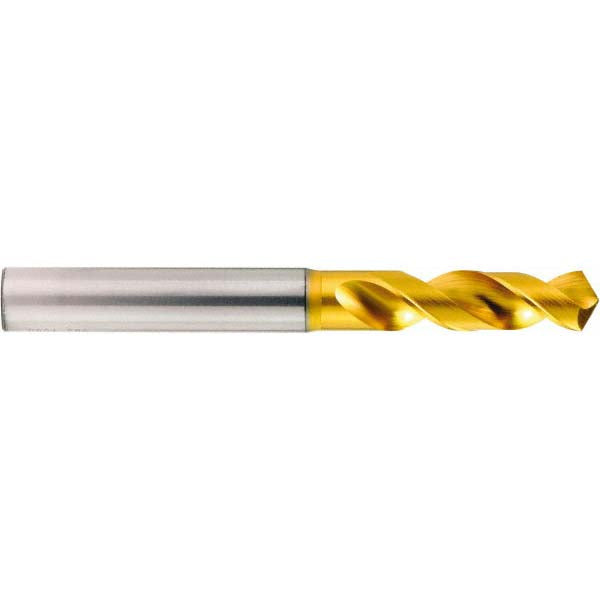

#39 Vanadium High Speed Steel Screw Machine Drill Bit, TiAlN, 130° point - OSG 859525311
MFR# 859525311Series 1100
$23.21List $29.77
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The OSG 859525311 is a #39 Vanadium High Speed Steel Screw Machine drill bit with a TiAlN finish, 130° point. Suited for steel, stainless steel, aluminum & non-ferrous. Series 1100.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.014 mm
Drill bit size0.0995
Drill bit size range0.0000 to 0.1000
Drill bit size wire#39
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio5xD
Flute length (mm)14.00
Flute typeRegular Spiral
Number of flutes2
Overall length1.8110
Point type4 Facet
Primary workpiece materialSteel; Stainless Steel; Aluminum & Non-Ferrous
Shank diameter0.1181
Shank typeStraight
Spiral typeRegular
Tool materialVanadium High Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
