OSG

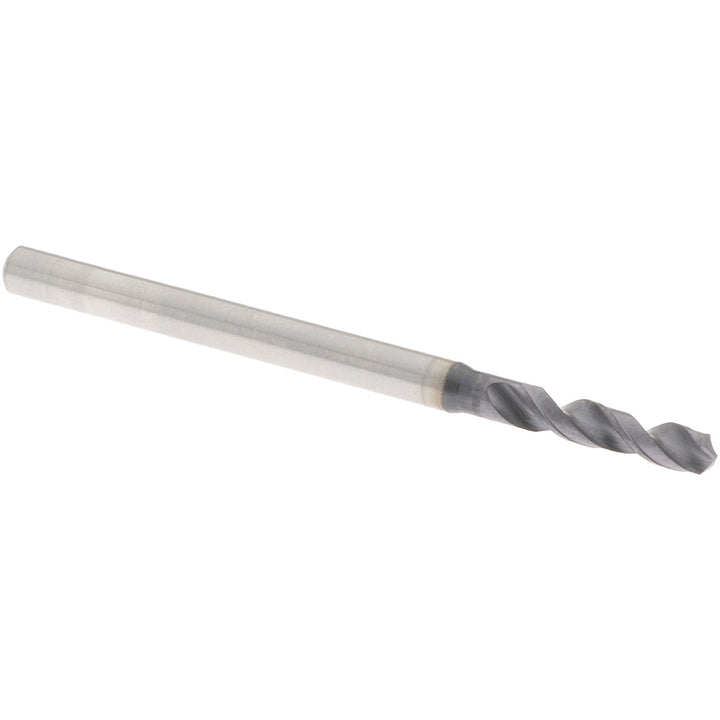

#38 High Speed Steel Screw Machine Drill Bit, Coated, 130° point - OSG 859525811
MFR# 859525811Series 1100
$22.34List $28.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The OSG 859525811 is a #38 High Speed Steel Screw Machine drill bit with a Coated finish, 130° point. Suited for steel, stainless steel, aluminum, aluminum alloy, aluminum silicate. Series 1100.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.014 mm
Drill bit size0.1015
Drill bit size range0.1000 to 0.1500
Drill bit size wire#38
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio5xD
Flute length (mm)14.00
Flute typeSpiral
Number of flutes2
Overall length (mm)46.00
Point typeFour Facet
Primary workpiece materialSteel; Stainless Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)3.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
