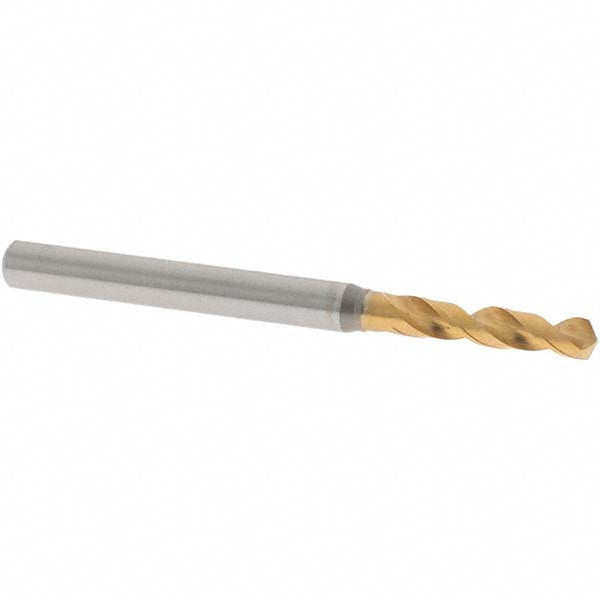

#30 High Speed Steel Screw Machine Drill Bit, Coated, 130° point - OSG 8595326

OSG

#30 High Speed Steel Screw Machine Drill Bit, Coated, 130° point - OSG 8595326

MFR# 8595326Series 1100

$21.65List $27.77 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The OSG 8595326 is a #30 High Speed Steel Screw Machine drill bit with a Coated finish, 130° point. Suited for steel, stainless steel, aluminum, aluminum alloy, aluminum silicate. Series 1100.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size0.1285
Drill bit size range0.1000 to 0.1500
Drill bit size wire#30
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio5xD
Flute length (mm)18.00
Flute typeSpiral
Number of flutes2
Overall length (mm)50.00
Point typeFaceted
Primary workpiece materialSteel; Stainless Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)4.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
