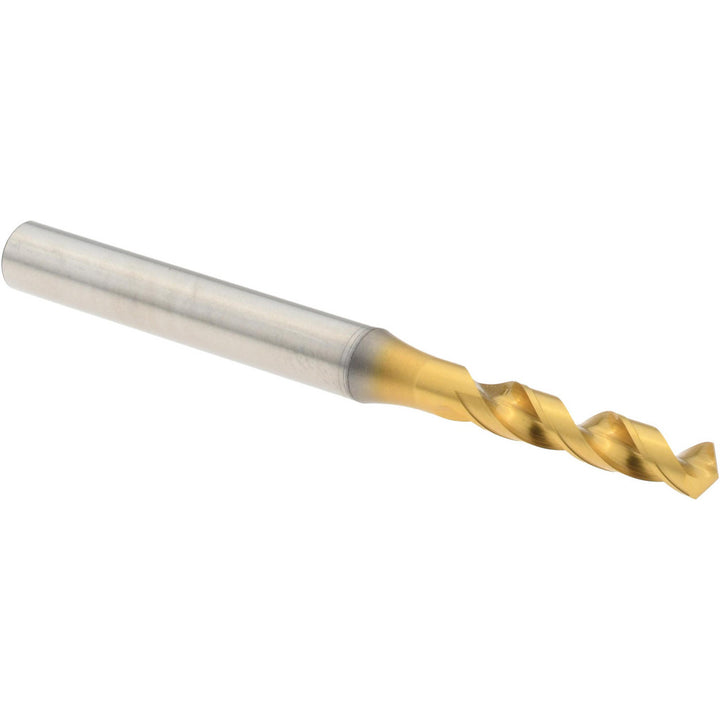

#18 High-Speed Steel Screw Machine Drill Bit, TiN, 120° point - OSG 8595431

OSG

#18 High-Speed Steel Screw Machine Drill Bit, TiN, 120° point - OSG 8595431

MFR# 8595431Series 1100

$30.94List $39.68 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The OSG 8595431 is a #18 High-Speed Steel Screw Machine drill bit with a TiN finish, 120° point. Suited for steel, stainless steel, aluminum, aluminum alloy, aluminum silicate. Series 1100.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size0.1695
Drill bit size range0.1500 to 0.2000
Drill bit size wire#18
Drill length typeScrew Machine
Drill point angle120
Flute by diameter ratio5xD
Flute length (mm)24.00
Flute typeSpiral
Number of flutes2
Overall length2.6772
Point typeFaceted
Primary workpiece materialSteel; Stainless Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter0.2362
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh-Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
