OSG

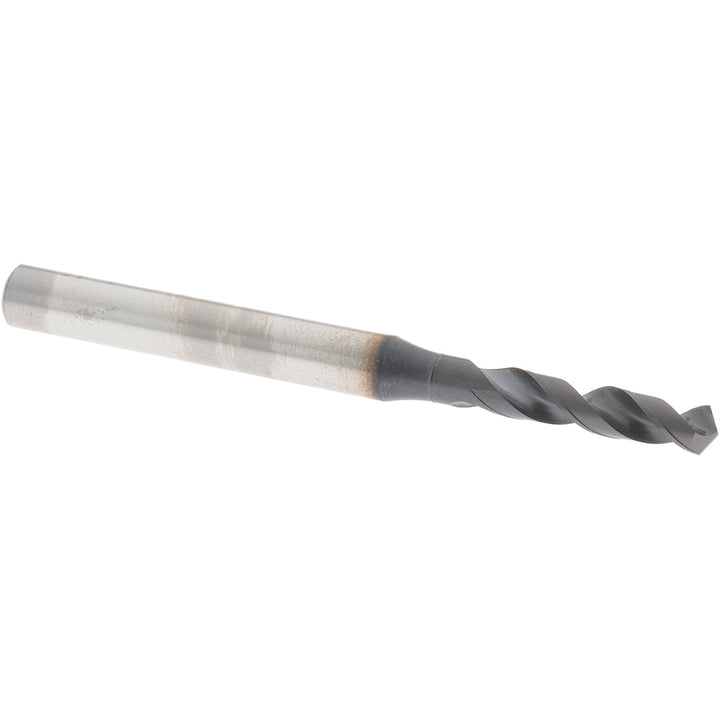

0.1752" High Speed Steel Screw Machine Drill Bit, Coated, 120° point - OSG 859544511
MFR# 859544511Series 1100
$31.66List $40.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The OSG 859544511 is a 0.1752" High Speed Steel Screw Machine drill bit with a Coated finish, 120° point. Suited for steel, stainless steel, aluminum, aluminum alloy, aluminum silicate. Series 1100.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit size0.1752
Drill bit size range0.1500 to 0.2000
Drill length typeScrew Machine
Drill point angle120
Flute by diameter ratio5xD
Flute length (mm)24.00
Flute typeSpiral
Number of flutes2
Overall length2.6772
Point typeFour Facet
Primary workpiece materialSteel; Stainless Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter0.2362
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
