#3 High Speed Steel Screw Machine Drill Bit, Coated, 120° point - OSG 8595542

OSG

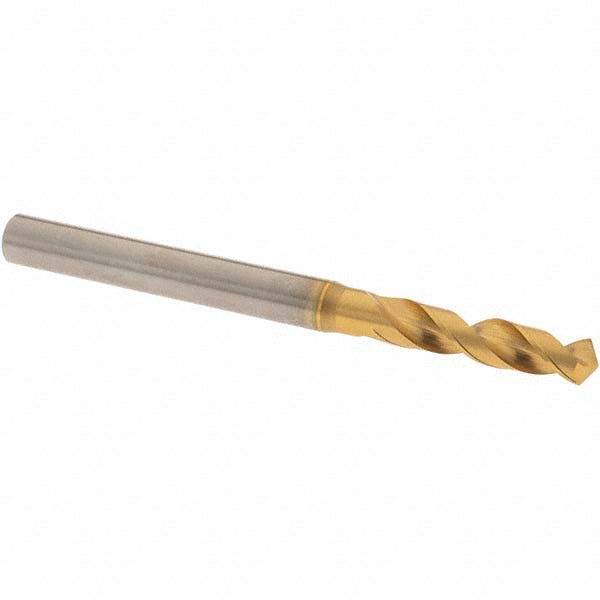

#3 High Speed Steel Screw Machine Drill Bit, Coated, 120° point - OSG 8595542

MFR# 8595542Series 1100

$42.21List $54.13 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The OSG 8595542 is a #3 High Speed Steel Screw Machine drill bit with a Coated finish, 120° point. Suited for steel, stainless steel, aluminum, aluminum alloy, aluminum silicate. Series 1100.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size0.2130
Drill bit size range0.2000 to 0.2500
Drill bit size wire#3
Drill length typeScrew Machine
Drill point angle120
Flute by diameter ratio5xD
Flute length (mm)28.00
Flute typeSpiral
Number of flutes2
Overall length (mm)72.00
Point typeFaceted
Primary workpiece materialSteel; Stainless Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
