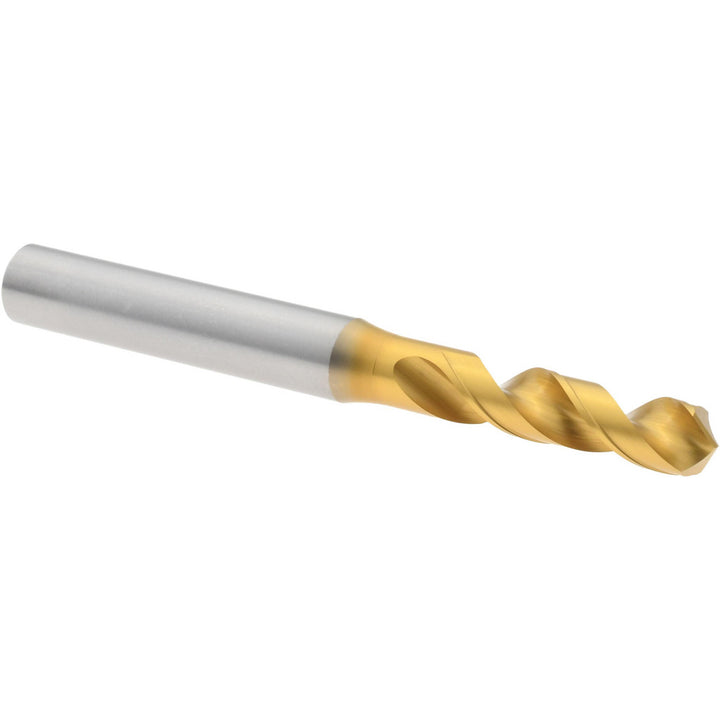

0.2579" High-Speed Steel Screw Machine Drill Bit, TiN, 120° point - OSG 8595655

OSG

0.2579" High-Speed Steel Screw Machine Drill Bit, TiN, 120° point - OSG 8595655

MFR# 8595655Series 1100

$49.57List $63.58 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The OSG 8595655 is a 0.2579" High-Speed Steel Screw Machine drill bit with a TiN finish, 120° point. Suited for steel, stainless steel, aluminum, aluminum alloy, aluminum silicate. Series 1100.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit gradeHigh Performance
Drill bit size0.2579
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle120
Flute by diameter ratio5xD
Flute length (mm)31.00
Flute typeSpiral
Number of flutes2
Overall length2.9528
Point typeFaceted
Primary workpiece materialSteel; Stainless Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter0.3150
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh-Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
