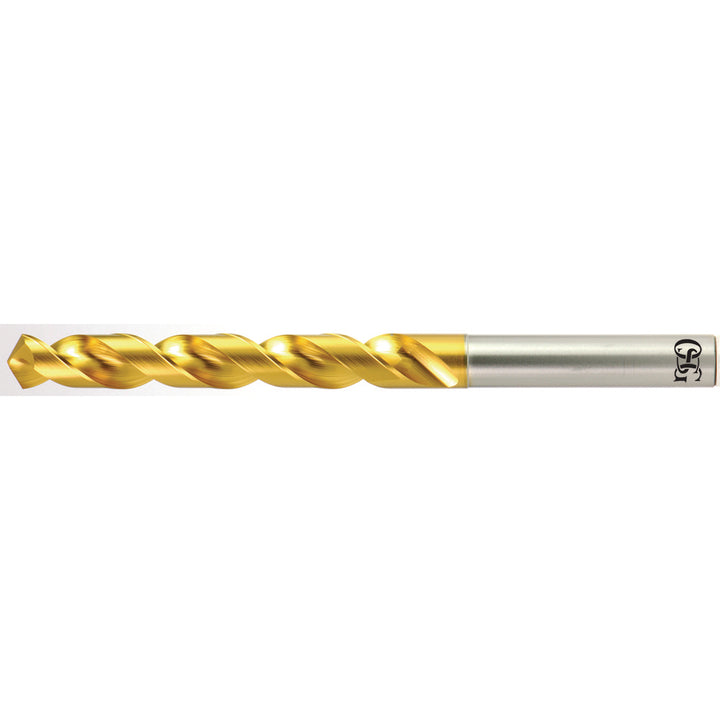

0.0953" Vanadium High Speed Steel Drill Bit, TiN, 130° point - OSG 8597242

OSG

0.0953" Vanadium High Speed Steel Drill Bit, TiN, 130° point - OSG 8597242

MFR# 8597242Series 1600

$24.20List $31.05 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The OSG 8597242 is a 0.0953" Vanadium High Speed Steel drill bit with a TiN finish, 130° point. Suited for steel, stainless steel, aluminum, aluminum alloy, aluminum silicate. Series 1600.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.014 mm
Drill bit gradeHigh Performance
Drill bit materialVanadium High Speed Steel
Drill bit size0.0953
Drill bit size range0.0500 - 0.1000
Drill point angle degrees130
Flute length (mm)30.00
Flute typeSpiral
Number of flutes2
Overall length (mm)62.00
Point typeS-Thinned
Primary workpiece materialSteel; Stainless Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)3.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningS-Thinned
