#31 Vanadium High Speed Steel Drill Bit, TiN, 130° point - OSG 8597305

OSG

#31 Vanadium High Speed Steel Drill Bit, TiN, 130° point - OSG 8597305

MFR# 8597305Series 1600

$22.48List $28.83 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

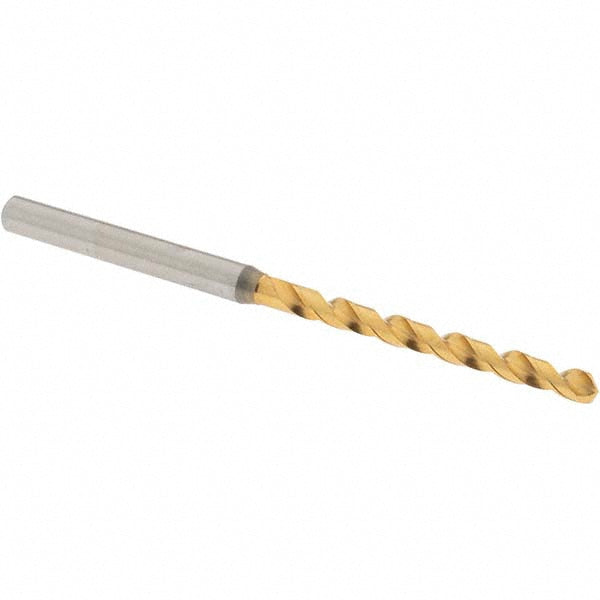

The OSG 8597305 is a #31 Vanadium High Speed Steel drill bit with a TiN finish, 130° point. Suited for steel, stainless steel, aluminum, aluminum alloy, aluminum silicate. Series 1600.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialVanadium High Speed Steel
Drill bit size0.1201
Drill bit size range0.1000 - 0.1500
Drill bit size wire#31
Drill point angle degrees130
Flute length (mm)36.00
Flute typeSpiral
Number of flutes2
Overall length (mm)68.00
Point typeS-Thinned
Primary workpiece materialSteel; Stainless Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)4.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningS-Thinned
