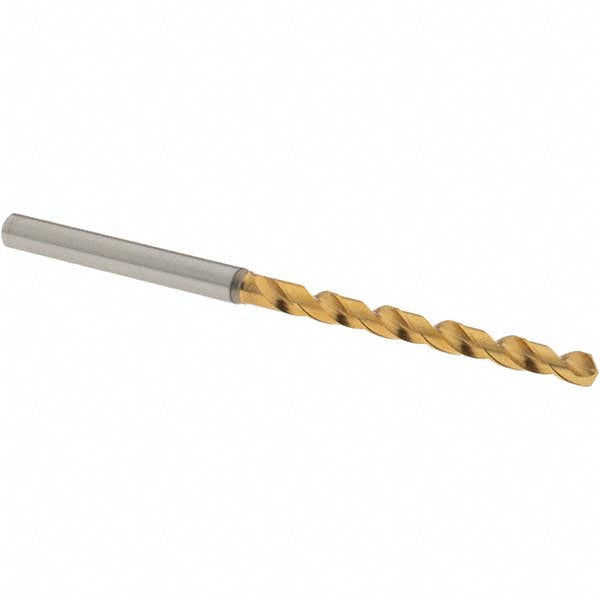

0.1331" Vanadium High Speed Steel Drill Bit, TiN, 130° point - OSG 8597338

OSG

0.1331" Vanadium High Speed Steel Drill Bit, TiN, 130° point - OSG 8597338

MFR# 8597338Series 1600

$21.66List $27.78 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The OSG 8597338 is a 0.1331" Vanadium High Speed Steel drill bit with a TiN finish, 130° point. Suited for stainless steel, aluminum & non-ferrous. Series 1600.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit materialVanadium High Speed Steel
Drill bit size0.1331
Drill bit size range0.1000 - 0.1500
Drill point angle degrees130
Flute length1.5354
Flute typeRegular Spiral
Number of flutes2
Overall length2.7953
Point typeS-Thinned
Primary workpiece materialStainless Steel; Aluminum & Non-Ferrous
Shank diameter (mm)4
Shank typeStraight
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningS-Thinned
