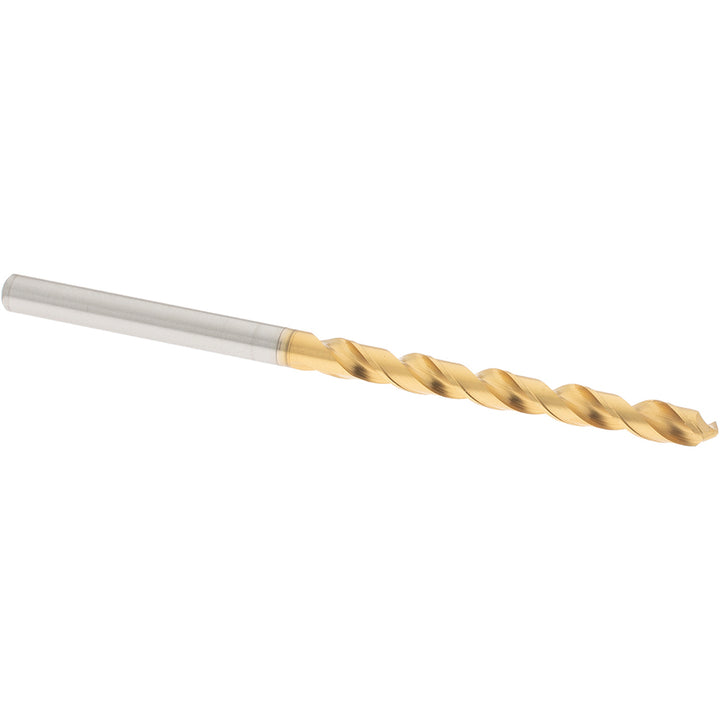

5/32" Vanadium High Speed Steel Drill Bit, TiN, 130° point - OSG 8597397

OSG

5/32" Vanadium High Speed Steel Drill Bit, TiN, 130° point - OSG 8597397

MFR# 8597397Series 1600

$28.34List $36.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size5/32
Flutes2
CoatingTiN

Description

The OSG 8597397 is a 5/32" Vanadium High Speed Steel drill bit with a TiN finish, 130° point. Suited for steel, stainless steel, aluminum, aluminum alloy, aluminum silicate. Series 1600.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialVanadium High Speed Steel
Drill bit size in5/32
Drill bit size range0.1500 - 0.2000
Drill point angle degrees130
Flute length (mm)43.00
Flute typeSpiral
Number of flutes2
Overall length (mm)75.00
Point typeS-Thinned
Primary workpiece materialSteel; Stainless Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)4.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningS-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
