0.1992" High Speed Steel Drill Bit, Titanium Nitride, 120° point - OSG 8597506
MFR# 8597506Series 1600
$45.64List $58.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

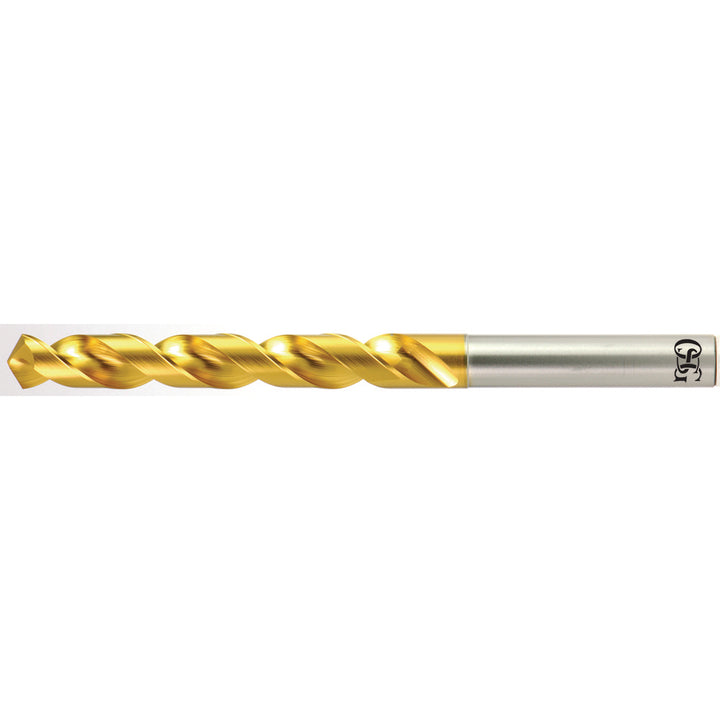

The OSG 8597506 is a 0.1992" High Speed Steel drill bit with a Titanium Nitride finish, 120° point. Suited for steel, stainless steel, aluminum, aluminum alloy, aluminum silicate. Series 1600.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit finish coatingTitanium Nitride
Drill bit materialHigh Speed Steel
Drill bit size0.1992
Drill bit size range0.1500 - 0.2000
Drill point angle degrees120
Flute length (mm)52.00
Flute typeSpiral
Number of flutes2
Overall length (mm)96.00
Point typeS-Thinned
Primary workpiece materialSteel; Stainless Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningS-Thinned
