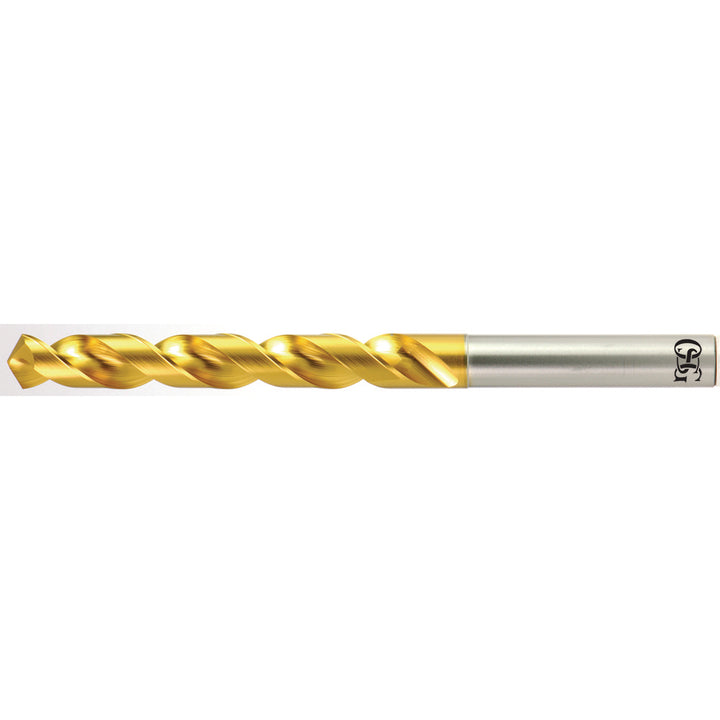

13/64" Vanadium High Speed Steel Drill Bit, TiN, 120° point - OSG 8597516

OSG

13/64" Vanadium High Speed Steel Drill Bit, TiN, 120° point - OSG 8597516

MFR# 8597516Series 1600

$45.64List $58.54 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size13/64
Flutes2
CoatingTiN

Description

The OSG 8597516 is a 13/64" Vanadium High Speed Steel drill bit with a TiN finish, 120° point. Suited for steel, stainless steel, aluminum, aluminum alloy, aluminum silicate. Series 1600.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialVanadium High Speed Steel
Drill bit size in13/64
Drill bit size range0.2000 - 0.2500
Drill point angle degrees120
Flute length (mm)52.00
Flute typeSpiral
Number of flutes2
Overall length (mm)96.00
Point typeS-Thinned
Primary workpiece materialSteel; Stainless Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningS-Thinned
