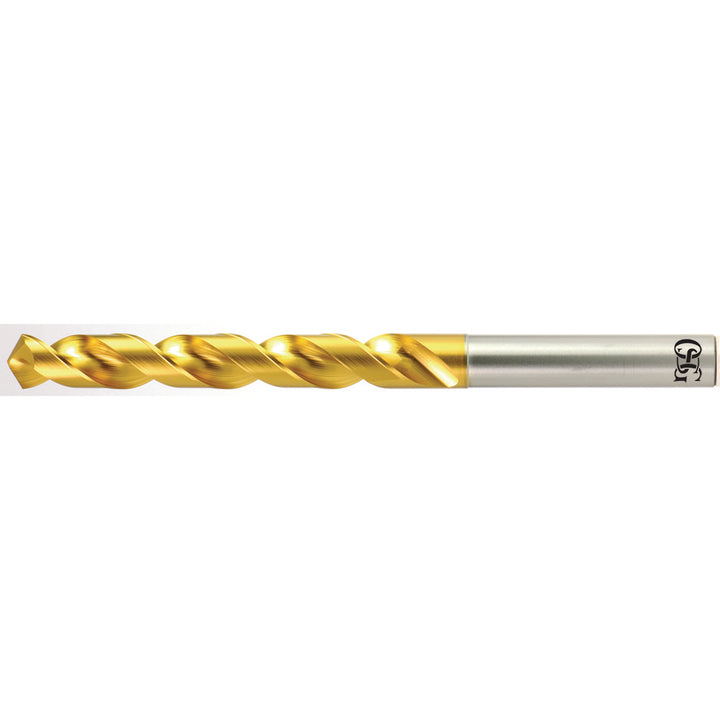

0.2240" Vanadium High Speed Steel Drill Bit, TiN, 120° point - OSG 8597569
MFR# 8597569Series 1600
$58.95List $74.29
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The OSG 8597569 is a 0.2240" Vanadium High Speed Steel drill bit with a TiN finish, 120° point. Suited for stainless steel, aluminum & non-ferrous. Series 1600.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit materialVanadium High Speed Steel
Drill bit size0.2240
Drill bit size range0.2000 - 0.2500
Drill point angle degrees120
Flute length2.2441
Flute typeRegular Spiral
Number of flutes2
Overall length3.9764
Point typeS-Thinned
Primary workpiece materialStainless Steel; Aluminum & Non-Ferrous
Shank diameter (mm)6
Shank typeStraight
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningS-Thinned
