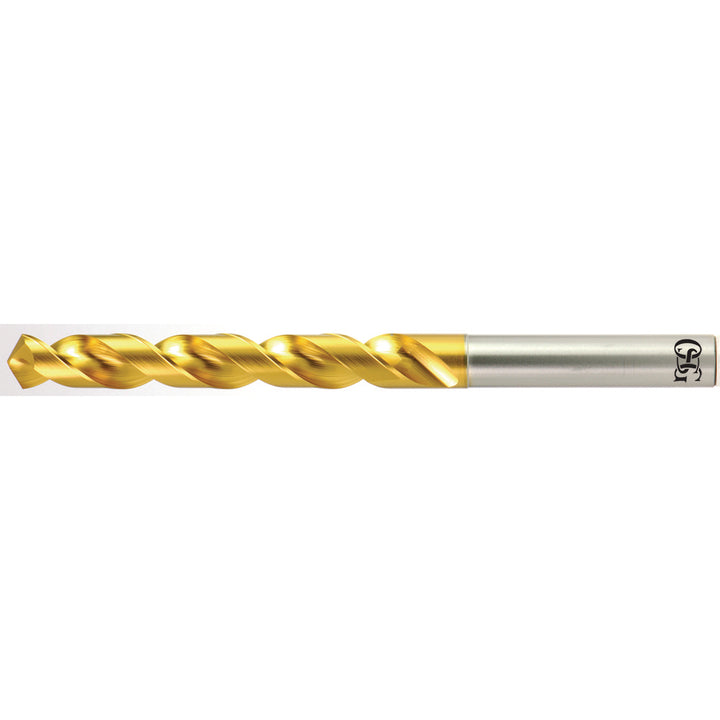

Letter C Vanadium High Speed Steel Drill Bit, TiN, 120° point - OSG 8597615

OSG

Letter C Vanadium High Speed Steel Drill Bit, TiN, 120° point - OSG 8597615

MFR# 8597615Series 1600

$51.20List $65.66 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The OSG 8597615 is a Letter C Vanadium High Speed Steel drill bit with a TiN finish, 120° point. Suited for stainless steel, aluminum & non-ferrous. Series 1600.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit gradeHigh Performance
Drill bit materialVanadium High Speed Steel
Drill bit size0.2420
Drill bit size letterC
Drill bit size range0.2000 - 0.2500
Drill point angle degrees120
Flute length2.4803
Flute typeRegular Spiral
Maximum drilling depth1.3750
Number of flutes2
Overall length4.2126
Point typeS-Thinned
Primary workpiece materialStainless Steel; Aluminum & Non-Ferrous
Shank diameter0.5625
Shank typeStraight
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningS-Thinned
