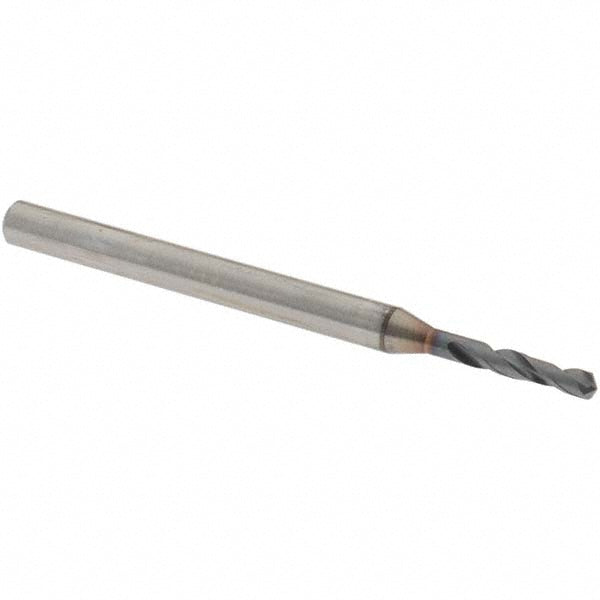

#51 XPM Screw Machine Drill Bit, 130° point - OSG 8599017
MFR# 8599017Series 1900
$22.10List $28.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The OSG 8599017 is a #51 XPM Screw Machine drill bit, 130° point. Suited for steel, alloy steel, cast iron, nickel alloy. Series 1900.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.014 mm
Drill bit gradeHigh Performance
Drill bit size0.0670
Drill bit size range0.0000 to 0.1000
Drill bit size wire#51
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length (mm)10.00
Flute typeSpiral
Number of flutes2
Overall length1.6535
Point typeStandard
Primary workpiece materialSteel; Alloy Steel; Cast Iron; Nickel Alloy
Shank diameter0.1181
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialXPM
Tool performanceHigh Performance
Web configurationTapered
Web thinningX-Thinned
