OSG

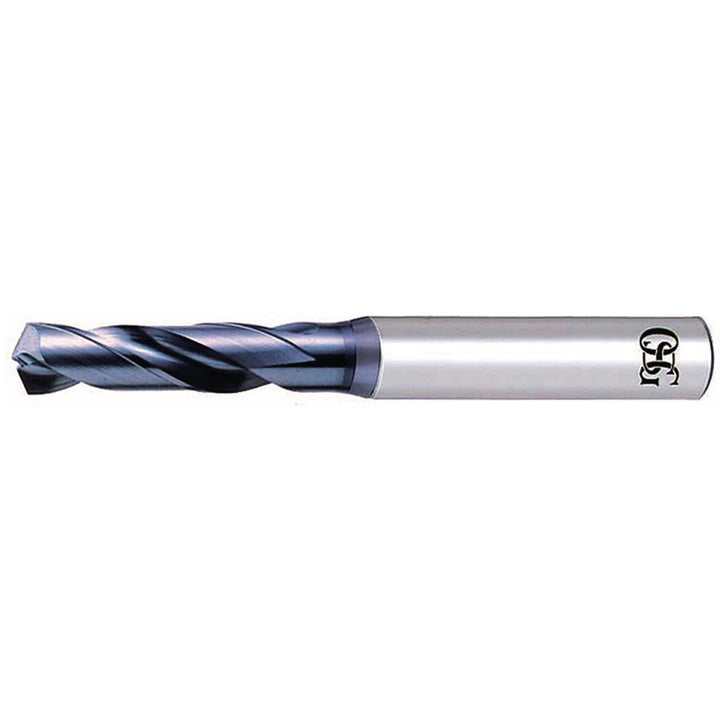

#71 XPM Screw Machine Drill Bit, Coated, 130° point - OSG 8608066
MFR# 8608066Series 1900
$36.08List $46.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The OSG 8608066 is a #71 XPM Screw Machine drill bit with a Coated finish, 130° point. Suited for steel, alloy steel, cast iron, nickel alloy. Series 1900.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.014 mm
Drill bit gradeHigh Performance
Drill bit size0.0260
Drill bit size range0.0000 to 0.1000
Drill bit size wire#71
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length (mm)4.00
Flute typeSpiral
Number of flutes2
Overall length (mm)38.00
Point typeStandard
Primary workpiece materialSteel; Alloy Steel; Cast Iron; Nickel Alloy
Shank diameter (mm)3.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialXPM
Tool performanceHigh Performance
Web configurationTapered
Web thinningX-Thinned
