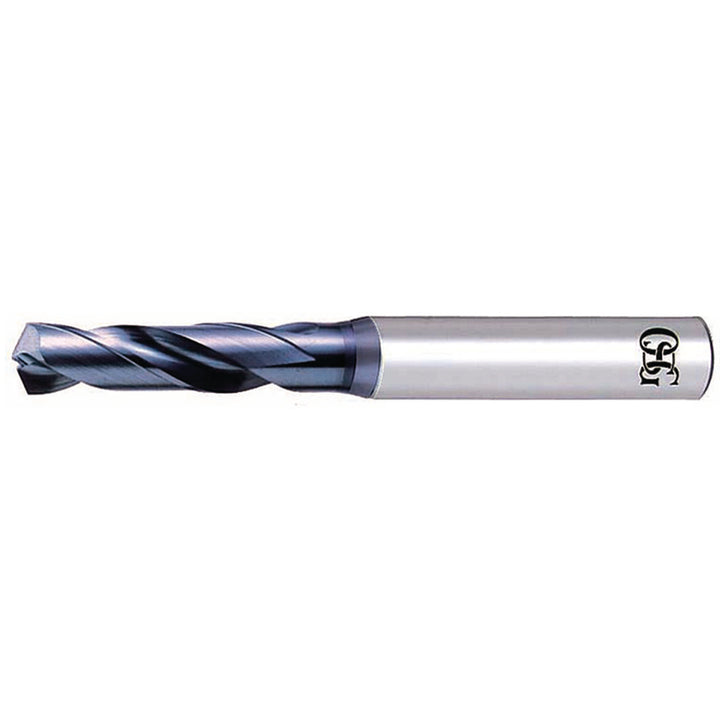

0.0335" Powdered Metal Screw Machine Drill Bit, TiCN, 130° point - OSG 8608085

OSG

0.0335" Powdered Metal Screw Machine Drill Bit, TiCN, 130° point - OSG 8608085

MFR# 8608085Series 1900

$28.63List $36.72 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiCN

Description

The OSG 8608085 is a 0.0335" Powdered Metal Screw Machine drill bit with a TiCN finish, 130° point. Suited for steel, cast iron, high-temp alloy, hardened materials. Series 1900.

Specifications

Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.014 mm
Drill bit gradeHigh Performance
Drill bit size0.0335
Drill bit size range0.0000 to 0.1000
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length (mm)5.00
Flute typeRegular Spiral
Number of flutes2
Overall length1.4961
Point typeR-Thinned
Primary workpiece materialSteel; Cast Iron; High-Temp Alloy; Hardened Materials
Shank diameter0.1181
Shank typeStraight
Spiral typeRegular
Tool materialPowdered Metal
Tool performanceHigh Performance
Web configurationTapered
Web thinningX-Thinned
