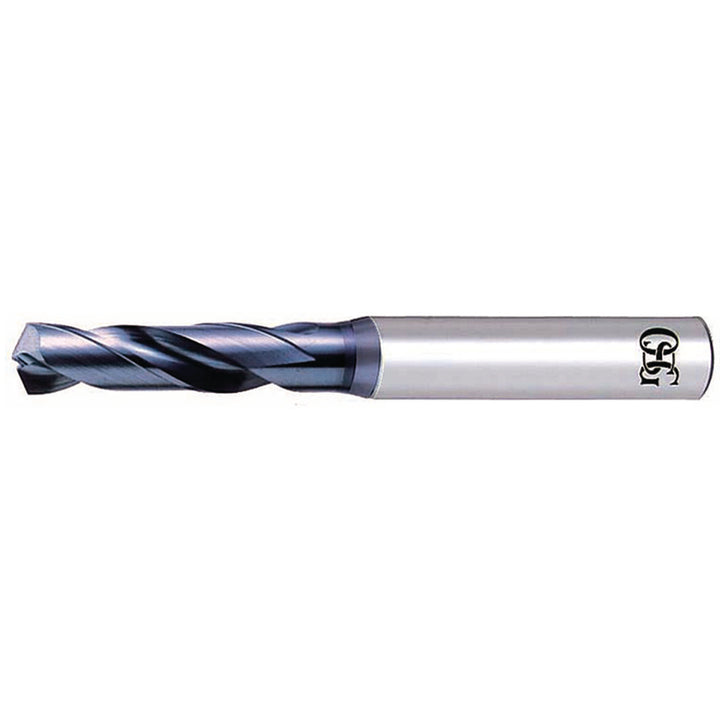

#57 Powdered Metal Screw Machine Drill Bit, TiCN, 130° point - OSG 8608109

OSG

#57 Powdered Metal Screw Machine Drill Bit, TiCN, 130° point - OSG 8608109

MFR# 8608109Series 1900

$28.34List $36.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiCN

Description

The OSG 8608109 is a #57 Powdered Metal Screw Machine drill bit with a TiCN finish, 130° point. Suited for steel, cast iron, high-temp alloy, hardened materials. Series 1900.

Specifications

Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.014 mm
Drill bit gradeHigh Performance
Drill bit size0.0430
Drill bit size range0.0000 to 0.1000
Drill bit size wire#57
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length (mm)7.00
Flute typeRegular Spiral
Number of flutes2
Overall length1.5354
Point typeR-Thinned
Primary workpiece materialSteel; Cast Iron; High-Temp Alloy; Hardened Materials
Shank diameter0.1181
Shank typeStraight
Spiral typeRegular
Tool materialPowdered Metal
Tool performanceHigh Performance
Web configurationTapered
Web thinningX-Thinned
