OSG

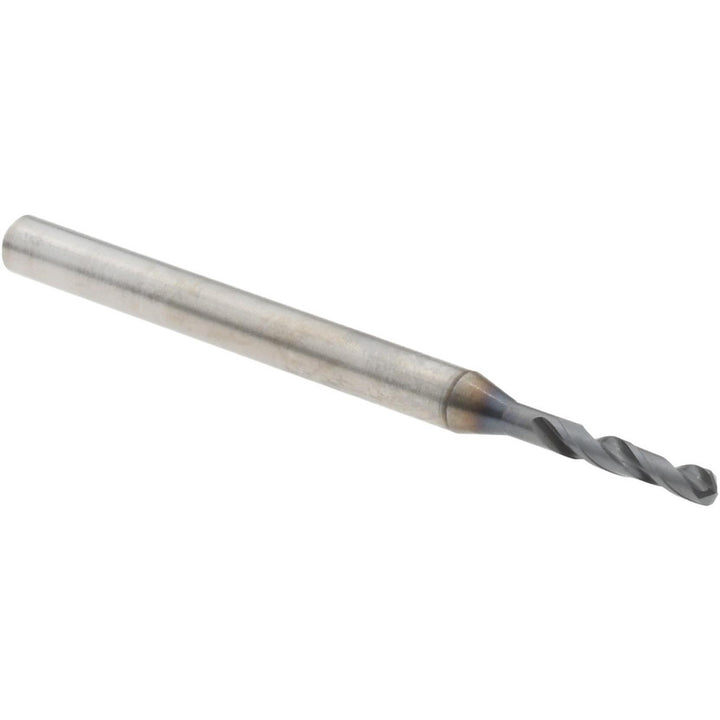

0.0642" XPM Screw Machine Drill Bit, 130° point - OSG 8608163
MFR# 8608163Series 1900
$25.46List $32.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The OSG 8608163 is a 0.0642" XPM Screw Machine drill bit, 130° point. Suited for steel, alloy steel, cast iron, nickel alloy. Series 1900.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.014 mm
Drill bit size0.0642
Drill bit size range0.0000 to 0.1000
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length (mm)10.00
Flute typeSpiral
Number of flutes2
Overall length1.6535
Point typeX-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron; Nickel Alloy
Shank diameter0.1969
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialXPM
Tool performanceHigh Performance
Web configurationTapered
Web thinningX-Thinned
