OSG

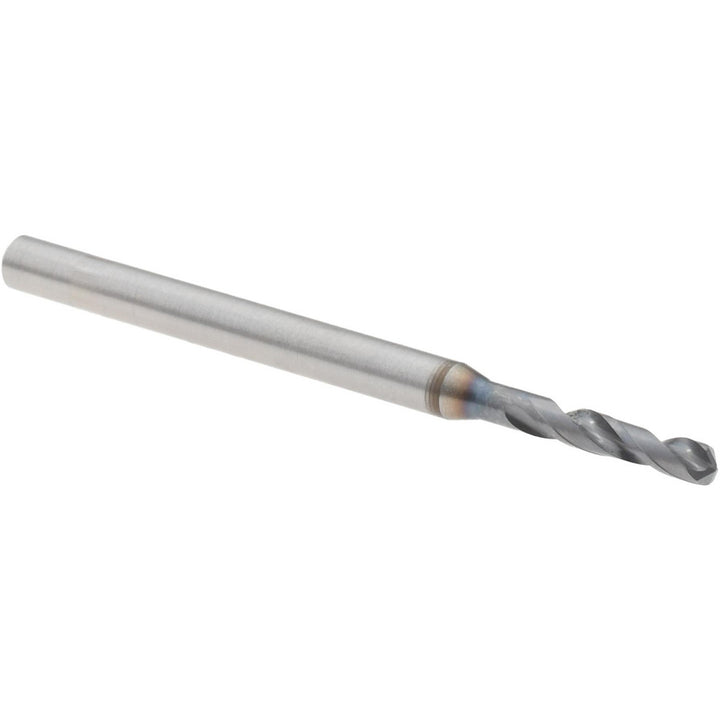

#46 XPM Screw Machine Drill Bit, 130° point - OSG 8608206
MFR# 8608206Series 1900
$29.93List $38.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The OSG 8608206 is a #46 XPM Screw Machine drill bit, 130° point. Suited for steel, alloy steel, cast iron, nickel alloy. Series 1900.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.014 mm
Drill bit gradeHigh Performance
Drill bit size0.0810
Drill bit size range0.0000 to 0.1000
Drill bit size wire#46
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length (mm)12.00
Flute typeSpiral
Number of flutes2
Overall length1.7323
Point typeStandard
Primary workpiece materialSteel; Alloy Steel; Cast Iron; Nickel Alloy
Shank diameter0.1181
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialXPM
Tool performanceHigh Performance
Web configurationTapered
Web thinningX-Thinned
