OSG

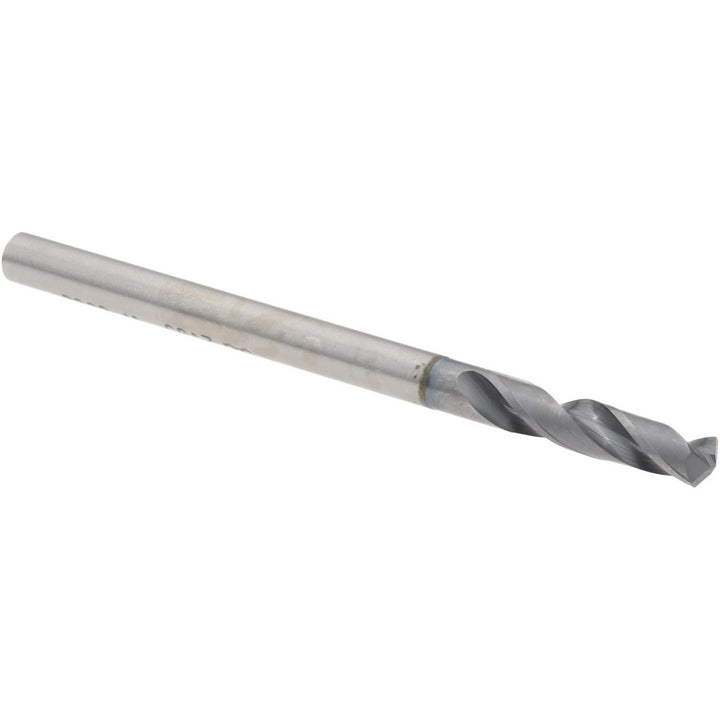

#32 XPM Screw Machine Drill Bit, 130° point - OSG 8608295
MFR# 8608295Series 1900
$26.07List $33.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The OSG 8608295 is a #32 XPM Screw Machine drill bit, 130° point. Suited for steel, alloy steel, cast iron, nickel alloy. Series 1900.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.014 mm
Drill bit gradeHigh Performance
Drill bit size0.1160
Drill bit size range0.1000 to 0.1500
Drill bit size wire#32
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length (mm)16.00
Flute typeSpiral
Number of flutes2
Overall length1.8898
Point typeStandard
Primary workpiece materialSteel; Alloy Steel; Cast Iron; Nickel Alloy
Shank diameter0.1181
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialXPM
Tool performanceHigh Performance
Web configurationTapered
Web thinningX-Thinned
