OSG

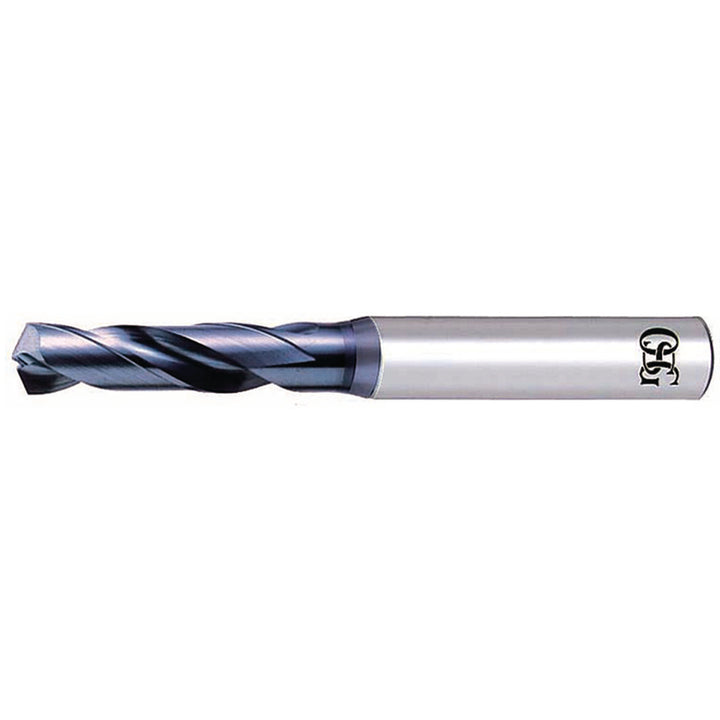

0.1256" Powdered Metal Screw Machine Drill Bit, TiCN, 130° point - OSG 8608319
MFR# 8608319Series 1900
$40.25List $50.73
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiCN
Description
The OSG 8608319 is a 0.1256" Powdered Metal Screw Machine drill bit with a TiCN finish, 130° point. Suited for steel, cast iron, high-temp alloy, hardened materials. Series 1900.
Specifications
Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit size0.1256
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length (mm)18.00
Flute typeRegular Spiral
Number of flutes2
Overall length1.9685
Point typeR-Thinned
Primary workpiece materialSteel; Cast Iron; High-Temp Alloy; Hardened Materials
Shank diameter0.1575
Shank typeStraight
Spiral typeRegular
Tool materialPowdered Metal
Tool performanceHigh Performance
Web configurationTapered
Web thinningX-Thinned
