OSG

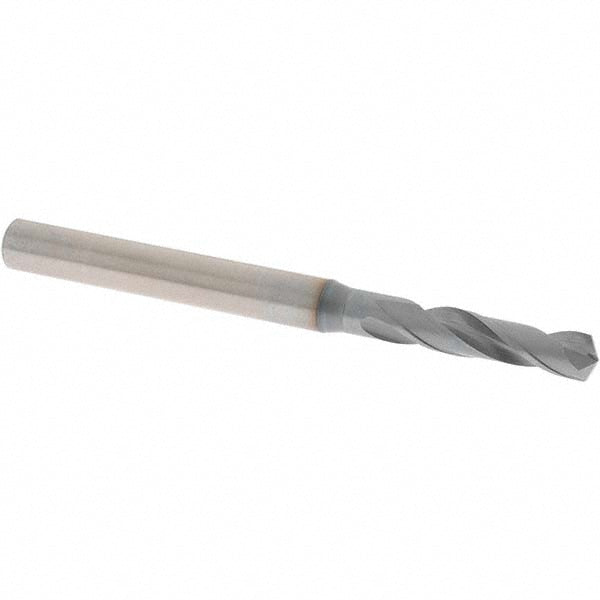

#8 XPM Screw Machine Drill Bit, Coated, 130° point - OSG 8608505
MFR# 8608505Series 1900
$51.79List $66.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The OSG 8608505 is a #8 XPM Screw Machine drill bit with a Coated finish, 130° point. Suited for steel, alloy steel, cast iron, nickel alloy. Series 1900.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size0.1990
Drill bit size range0.1500 to 0.2000
Drill bit size wire#8
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length (mm)26.00
Flute typeSpiral
Number of flutes2
Overall length (mm)70.00
Point typeStandard
Primary workpiece materialSteel; Alloy Steel; Cast Iron; Nickel Alloy
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialXPM
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
