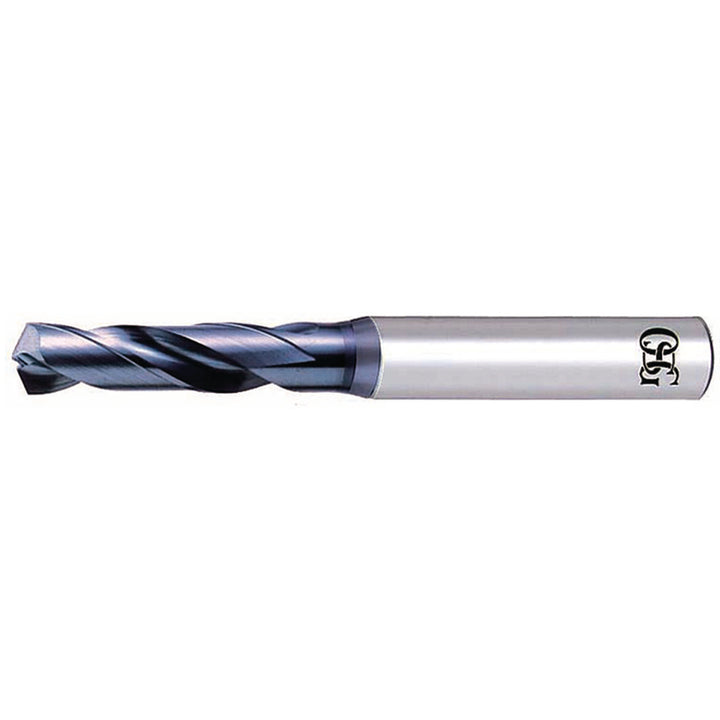

7/32" XPM Screw Machine Drill Bit, Coated, 130° point - OSG 8608556

OSG

7/32" XPM Screw Machine Drill Bit, Coated, 130° point - OSG 8608556

MFR# 8608556Series 1900

$63.84List $81.88 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/32
Flutes2
CoatingCoated

Description

The OSG 8608556 is a 7/32" XPM Screw Machine drill bit with a Coated finish, 130° point. Suited for steel, alloy steel, cast iron, nickel alloy. Series 1900.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size in7/32
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length (mm)28.00
Flute typeSpiral
Number of flutes2
Overall length (mm)72.00
Point typeStandard
Primary workpiece materialSteel; Alloy Steel; Cast Iron; Nickel Alloy
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialXPM
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
