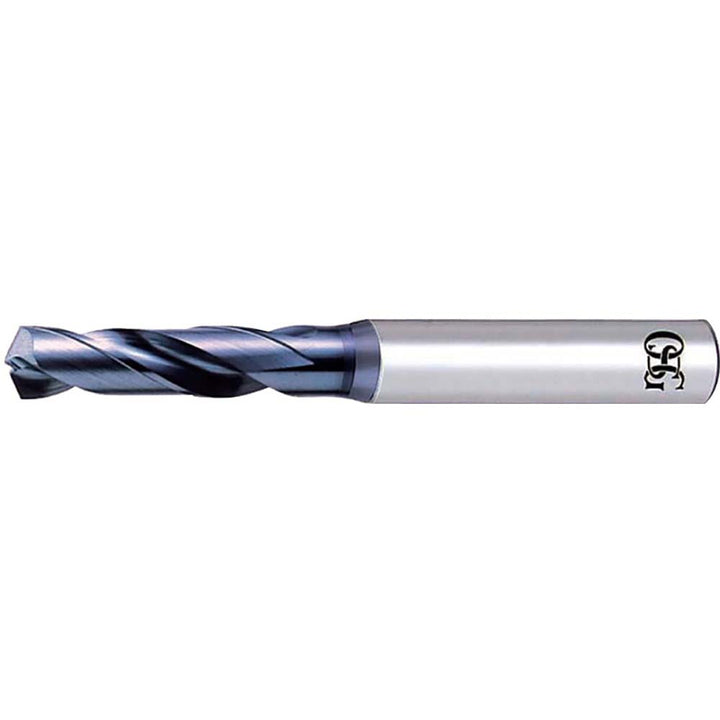

17/64" XPM Drill Bit, V, 130° point - OSG 8608675
MFR# 8608675Series 1900
$43.40List $55.67
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size17/64
Flutes2
Description
The OSG 8608675 is a 17/64" XPM drill bit with a V finish, 130° point. Suited for steel, alloy steel, cast iron, nickel alloy. Series 1900.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit finish coatingV
Drill bit materialXPM
Drill bit size in17/64
Drill point angle degrees130
Flute length (mm)34.00
Flute typeSpiral
Number of flutes2
Overall length (mm)78.00
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron; Nickel Alloy
Shank diameter (mm)8.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering; Pilot Drilling
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
