OSG
5/16" Powdered Metal Drill Bit, V, 130° point - OSG 8608794
MFR# 8608794Series 1900
$47.67List $61.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/16
Flutes2
Description

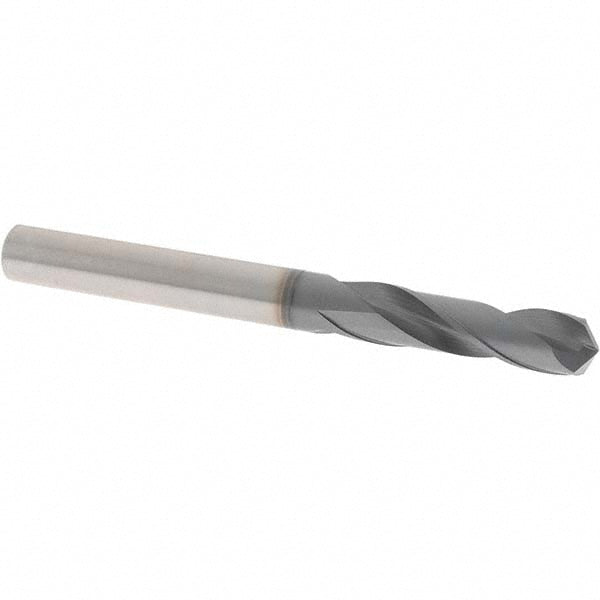

The OSG 8608794 is a 5/16" Powdered Metal drill bit with a V finish, 130° point. Suited for steel, alloy steel, cast iron, nickel alloy. Series 1900.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit finish coatingV
Drill bit materialPowdered Metal
Drill bit size in5/16
Drill bit size range0.3000 - 0.3500
Drill point angle degrees130
Flute length (mm)37.00
Flute typeSpiral
Number of flutes2
Overall length (mm)81.00
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron; Nickel Alloy
Shank diameter (mm)8.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering; Pilot Drilling
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
