#9 Powdered Metal Drill Bit, 130° point - OSG 8612498
MFR# 8612498Series 1950
$62.82List $79.18
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

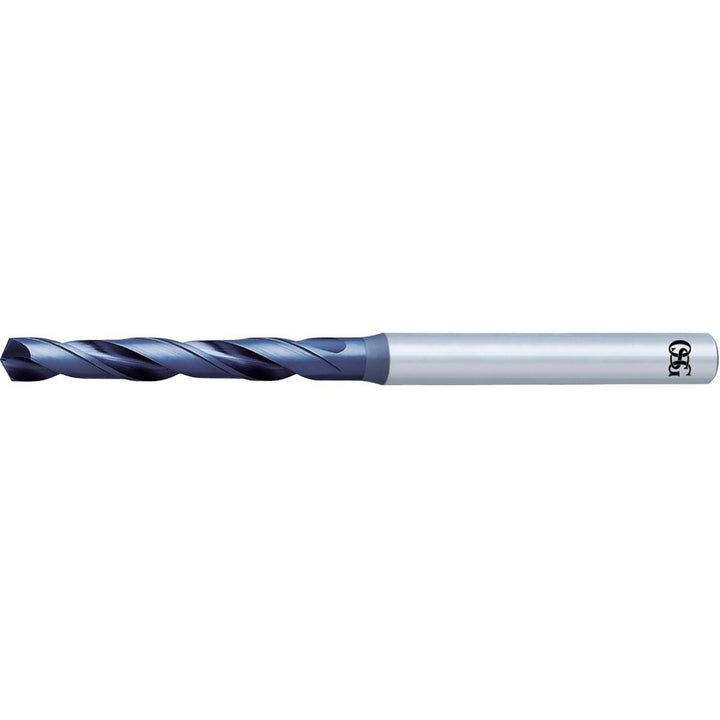

The OSG 8612498 is a #9 Powdered Metal drill bit, 130° point. Suited for steel, alloy steel, cast iron, nickel alloy. Series 1950.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit materialPowdered Metal
Drill bit size0.1960
Drill bit size range0.1500 - 0.2000
Drill bit size wire#9
Drill point angle degrees130
Flute length (mm)52.00
Flute typeSpiral
Number of flutes2
Overall length (mm)96.00
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron; Nickel Alloy
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
