OSG
#1 Powdered Metal Drill Bit, V, 130° point - OSG 8612579
MFR# 8612579Series 1950
$67.21List $86.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

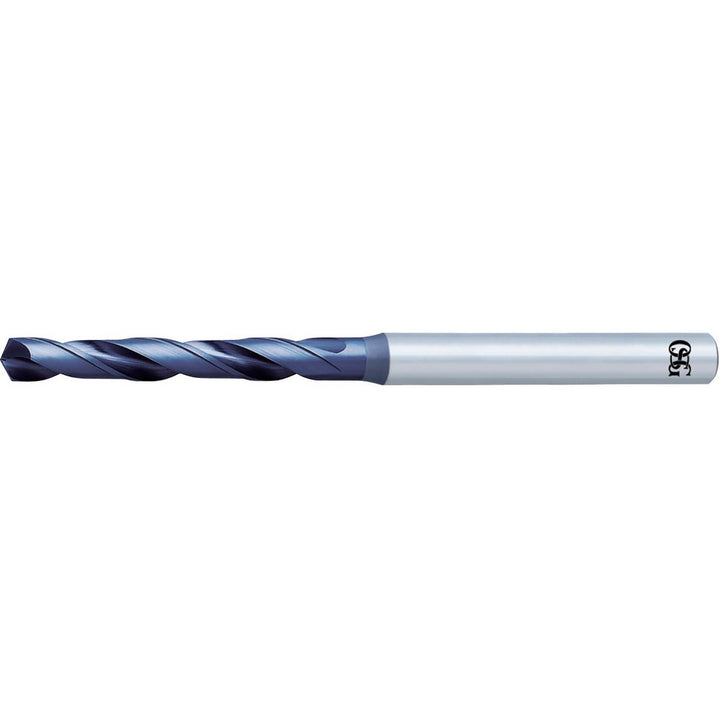

The OSG 8612579 is a #1 Powdered Metal drill bit with a V finish, 130° point. Suited for steel, alloy steel, cast iron, nickel alloy. Series 1950.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit finish coatingV
Drill bit gradeHigh Performance
Drill bit materialPowdered Metal
Drill bit size0.2280
Drill bit size range0.2000 - 0.2500
Drill bit size wire#1
Drill point angle degrees130
Flute length (mm)57.00
Flute typeSpiral
Number of flutes2
Overall length (mm)101.00
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron; Nickel Alloy
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
