3/8" Powdered Metal Drill Bit, V, 130° point - OSG 8612952
MFR# 8612952Series 1950
$87.44List $112.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/8
Flutes2
Description

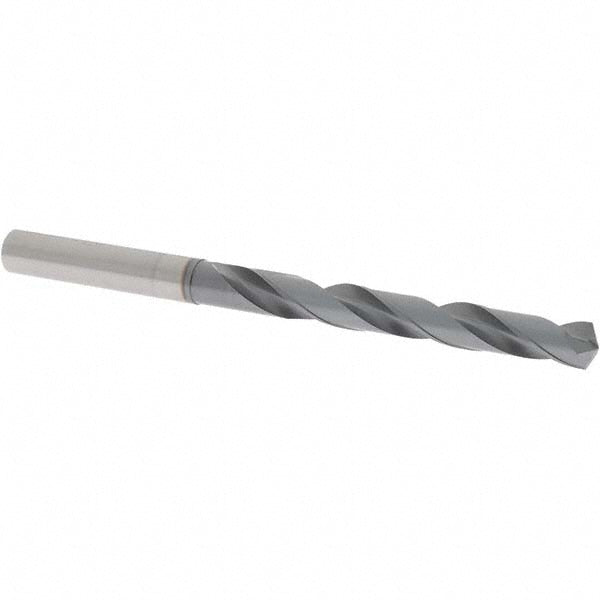

The OSG 8612952 is a 3/8" Powdered Metal drill bit with a V finish, 130° point. Suited for steel, alloy steel, cast iron, nickel alloy. Series 1950.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit finish coatingV
Drill bit gradeHigh Performance
Drill bit materialPowdered Metal
Drill bit size in3/8
Drill bit size range0.3500 - 0.4000
Drill point angle degrees130
Flute length (mm)87.00
Flute typeSpiral
Number of flutes2
Overall length (mm)137.00
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron; Nickel Alloy
Shank diameter (mm)10.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
