OSG

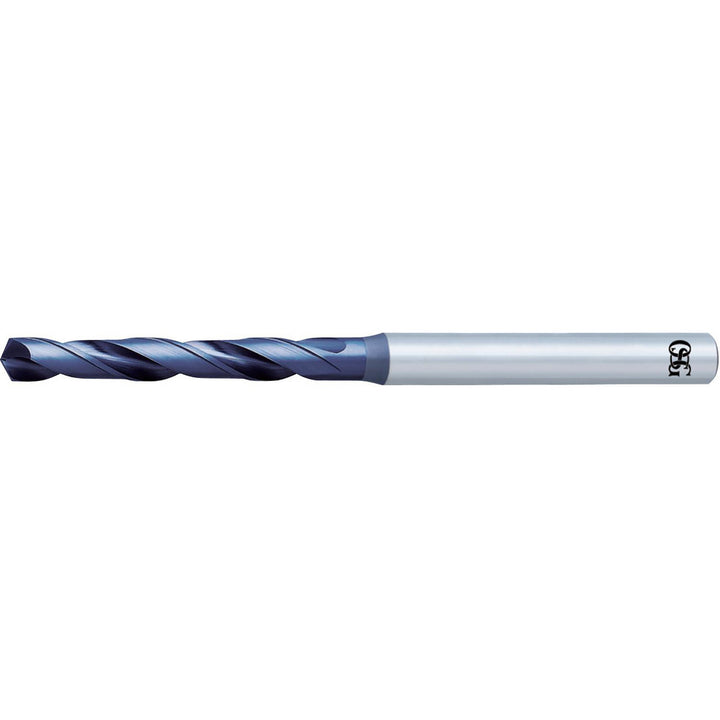

Letter Z Powdered Metal Drill Bit, 130° point - OSG 8613049
MFR# 8613049Series 1950
$96.42List $123.67
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The OSG 8613049 is a Letter Z Powdered Metal drill bit, 130° point. Suited for steel, alloy steel, cast iron, nickel alloy. Series 1950.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.027 mm
Drill bit gradeHigh Performance
Drill bit materialPowdered Metal
Drill bit size0.4130
Drill bit size letterZ
Drill bit size range0.4000 - 0.5000
Drill point angle degrees130
Flute length (mm)87.00
Flute typeSpiral
Number of flutes2
Overall length (mm)144.00
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron; Nickel Alloy
Shank diameter (mm)12.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
