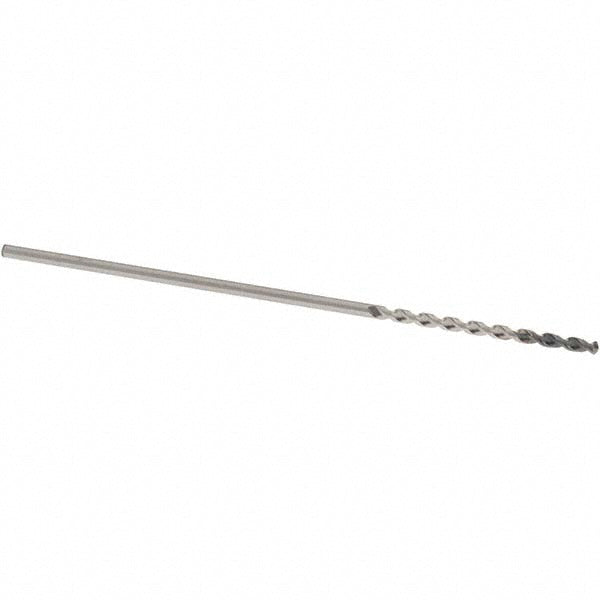

1/16" Cobalt Drill Bit, WXL, 120° point - OSG 8622816
MFR# 8622816Series 1750
$28.65List $36.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/16
CoatingWXL
Description
The OSG 8622816 is a 1/16" Cobalt drill bit with a WXL finish, 120° point. Series 1750.
Specifications
Coating finishWXL
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit gradeHigh Performance
Drill bit size in1/16
Drill point angle degrees120
Flute length (mm)26.00
Flute typeSpiral
Material applicationAlloy Steel; Aluminum; Carbon Steel; Cast Iron; Die Steel; Hardened Steel; Stainless Steel
Material gradeM-6K
Overall length (mm)75.00
Point typeStandard
Shank diameter in1/16
Shank typeStraight
Spiral typeFast
Tool materialCobalt
Web configurationTapered
Web thinningX-Thinned
