OSG

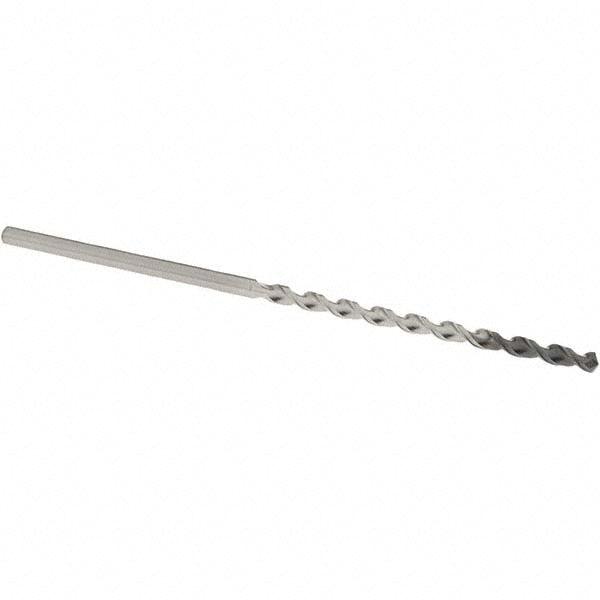

0.1614" Cobalt Drill Bit, WXL, 120° point - OSG 8623041
MFR# 8623041Series 1750
$54.56List $69.97
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingWXL
Description
The OSG 8623041 is a 0.1614" Cobalt drill bit with a WXL finish, 120° point. Series 1750.
Specifications
Coating finishWXL
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size0.1614
Drill point angle120
Flute length (mm)74.00
Flute typeSpiral
Material gradeM6K
Number of flutes2
Overall length (mm)135.00
Point typeStandard
Shank diameter0.1614
Shank typeStraight-Cylindrical
Spiral typeFast
Tool materialCobalt
Web configurationTapered
Web thinningR-Thinned
