OSG

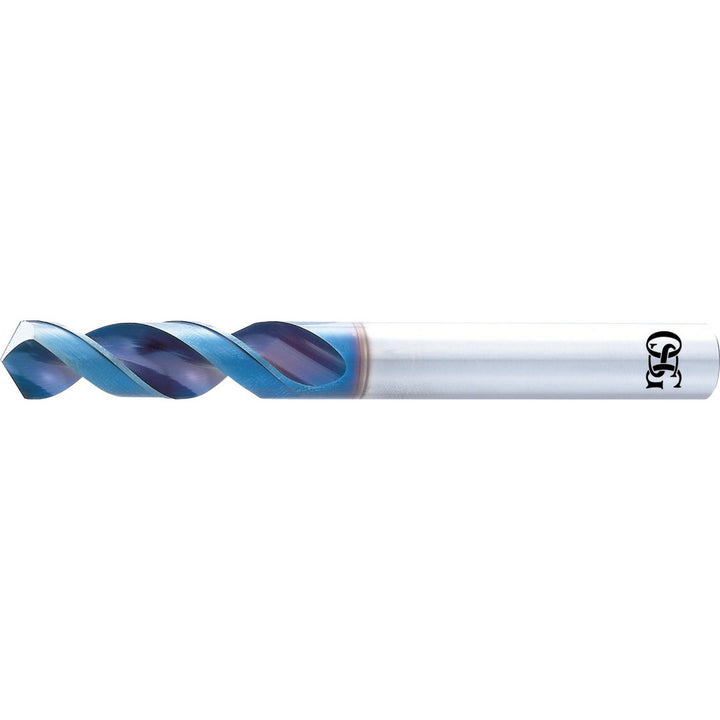

0.3543" High Speed Steel Screw Machine Drill Bit, Coated, 120° point - OSG 8650900
MFR# 8650900Series 1150
$60.87List $78.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The OSG 8650900 is a 0.3543" High Speed Steel Screw Machine drill bit with a Coated finish, 120° point. Suited for steel, alloy steel, aluminum, aluminum alloy, aluminum silicate. Series 1150.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit gradeHigh Performance
Drill bit size0.3543
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle120
Flute by diameter ratio3xD
Flute length (mm)40.00
Flute typeSpiral
Number of flutes2
Overall length (mm)90.00
Point typeFaceted
Primary workpiece materialSteel; Alloy Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)10.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
