0.1299" Vanadium High Speed Steel Drill Bit, WD1, 130° point - OSG 8655330

OSG

0.1299" Vanadium High Speed Steel Drill Bit, WD1, 130° point - OSG 8655330

MFR# 8655330Series 1650

$22.01List $28.23 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

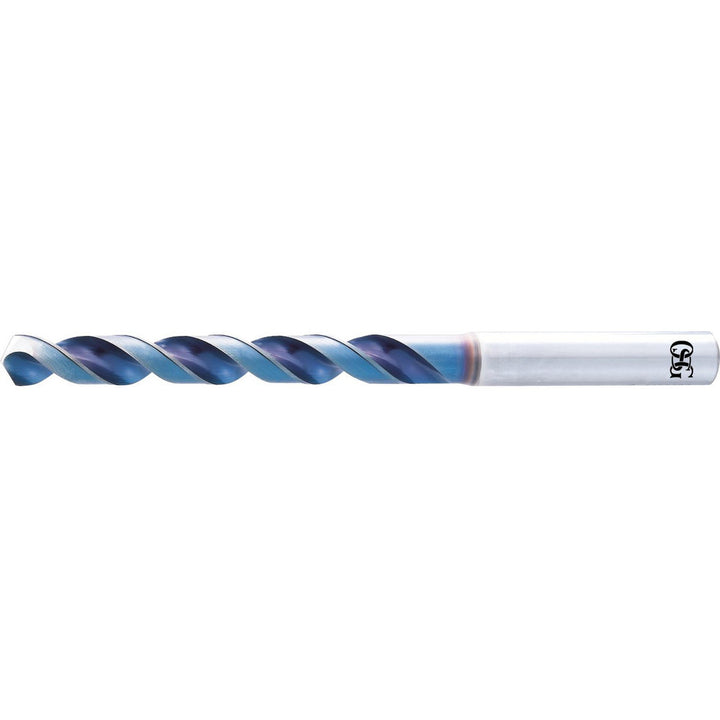

The OSG 8655330 is a 0.1299" Vanadium High Speed Steel drill bit with a WD1 finish, 130° point. Suited for steel, alloy steel, aluminum, aluminum alloy, aluminum silicate. Series 1650.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit finish coatingWD1
Drill bit gradeHigh Performance
Drill bit materialVanadium High Speed Steel
Drill bit size0.1299
Drill bit size range0.1000 - 0.1500
Drill point angle degrees130
Flute length (mm)36.00
Flute typeSpiral
Number of flutes2
Overall length (mm)68.00
Point typeS-Thinned
Primary workpiece materialSteel; Alloy Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)4.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningS-Thinned
